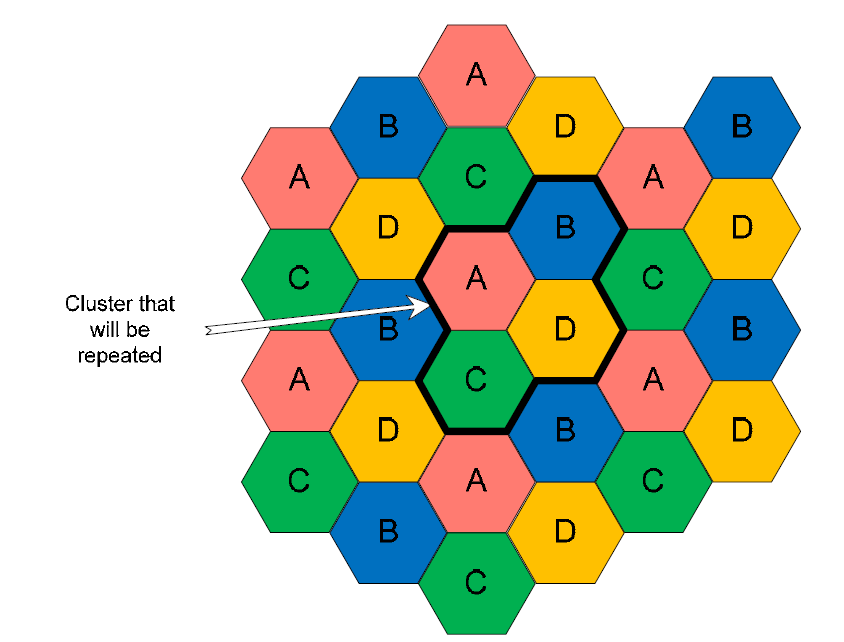

四細胞系統

七細胞系統

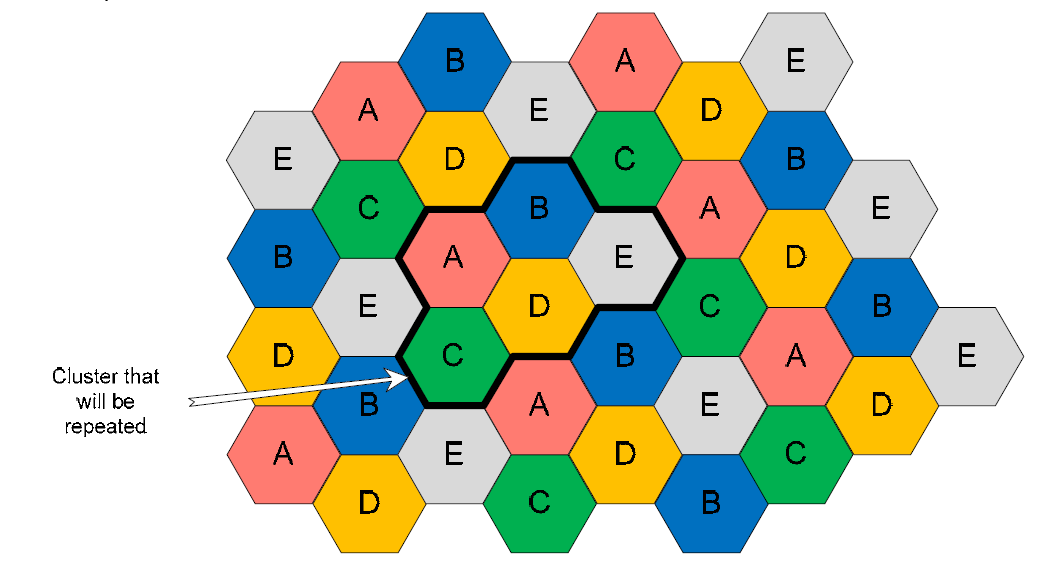

Spectrum reuse

Cell

無線電接取服務

Base Station

Base Station

Base Station

Base Station

Base Station

Base Station in Athens

Base Station on Mt. Royal, Montreal

Base Station on Mt. Royal, Montreal

Base Station on YiLan Railway

Base Station on Alps

Fake Base Station

Air Base Station

網路架構

Base Station and BSC

HLR/VLR Database

Handoff

行動電話網路與固定網路互連

通訊階層架構

細胞分裂

MultiCell

Registration Procedure

Call Setup Procedure

Cellular System Evolution

IS-41

IS-41

Inter-Base Station Handoff

Inter-System Handoff

International Roaming

International Roaming

Evolutionary Development

Practical deployment issues

Wireless QoS - Issues

Wireless QoS - Control

Analog

GSM

功能架構

Mobility

行動通訊癱瘓原因

Mobile Communications were Vulnerable

Mobile Communications were Vulnerable

Mobile Communications were Vulnerable

Mobile Communications were Vulnerable

Mobile Communications were Vulnerable

Available Options

Voluntary MANET Based P2Pnet

Feasibility Assessment

First Generation System Deployment

頻譜分配

行動電話市場成長

國內行動電話市場成長

Dream

What a Complicated Business Card

Expected Solution

PCS Network Concept

Zonal Service Model

四層架構

Untitled Document
簡介

1946 年公眾無線電話在美國 St. Louis 開始

高功率、高天線，大涵蓋區、連接 PSTN

低頻道量、用戶少

1976 年 New York Area 只有 543 客戶， 3700 門號
蜂巢概念

頻道重複使用，加大容量
FR ../WirelessTech mobile Wed Mar 28 23:30:00 CST 2012 Untitled Document
細胞系統
Wed Mar 28 23:30:00 CST 2012 Untitled Document
細胞系統
Wed Mar 28 23:30:01 CST 2012 Untitled Document
細胞系統
Wed Mar 28 23:30:01 CST 2012 Untitled Document
細胞系統
Wed Mar 28 23:30:01 CST 2012 Untitled Document
細胞系統
Wed Mar 28 23:30:01 CST 2012 Untitled Document

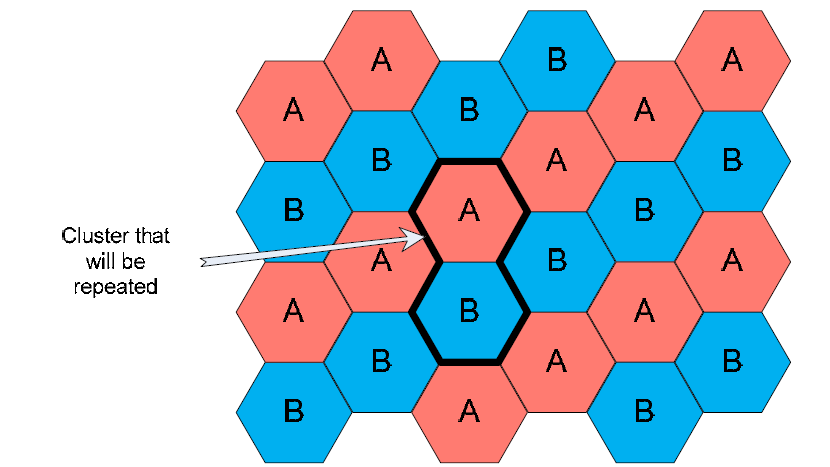

四細胞系統

Frequency Reuse
Wed Mar 28 23:30:01 CST 2012 Untitled Document

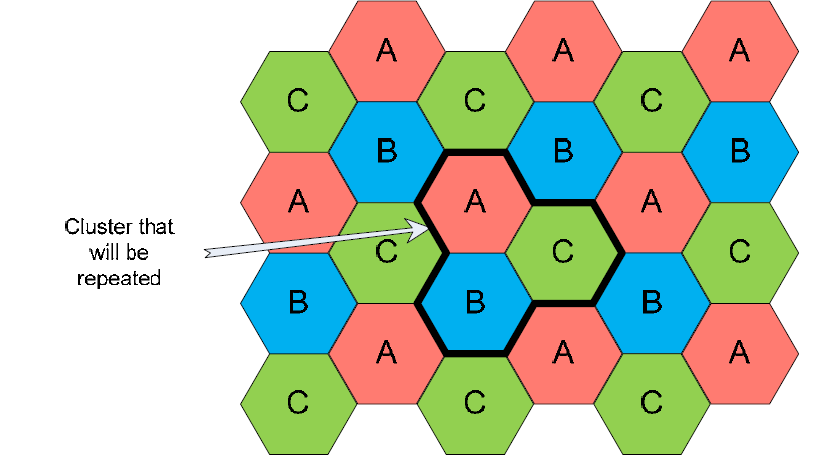

七細胞系統

Frequency Reuse
Wed Mar 28 23:30:01 CST 2012 Untitled Document

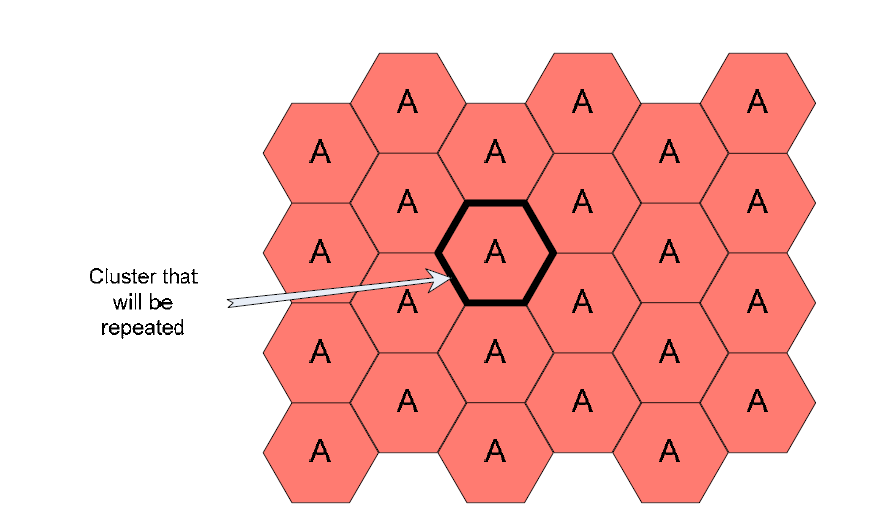

Spectrum reuse

Reuse the same EM spectrum in other geographical location
Frequency Reuse Factor
  1 /


the number of cell in a Cluster
Wed Mar 28 23:30:01 CST 2012 Untitled Document
Cell
Cell
  • Typically, cells are hexagonal
  • In practice, it depends on available cell sites and radio propagation conditions
    • Sector
  • Partial area of a cell that is served by a directional antenna
    • Wed Mar 28 23:30:01 CST 2012 Untitled Document
    無線電接取服務
    Wed Mar 28 23:30:01 CST 2012 Untitled Document

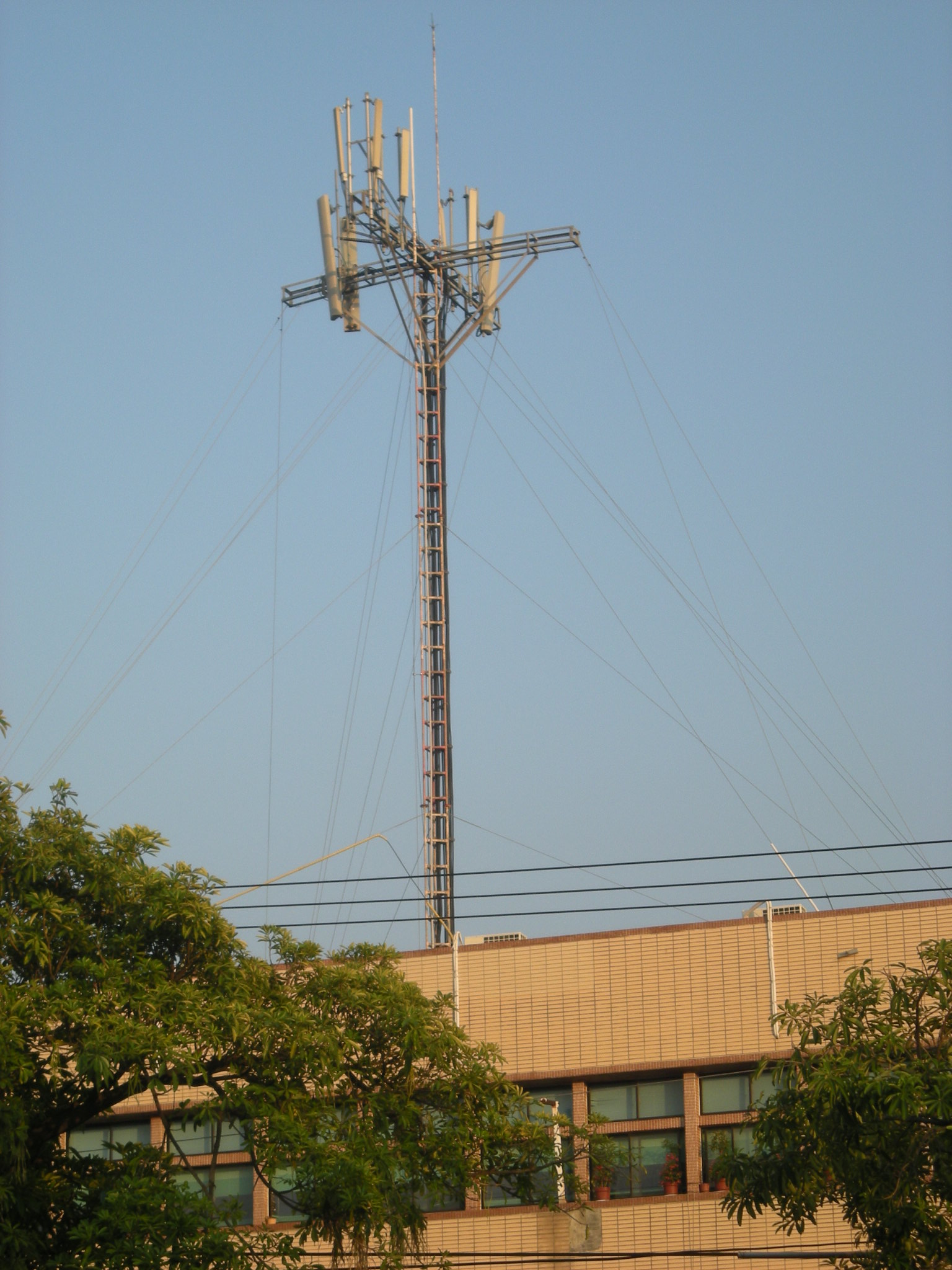

    Base Station
    中華電信基地台
    Wed Mar 28 23:30:01 CST 2012 Untitled Document
    Base Station

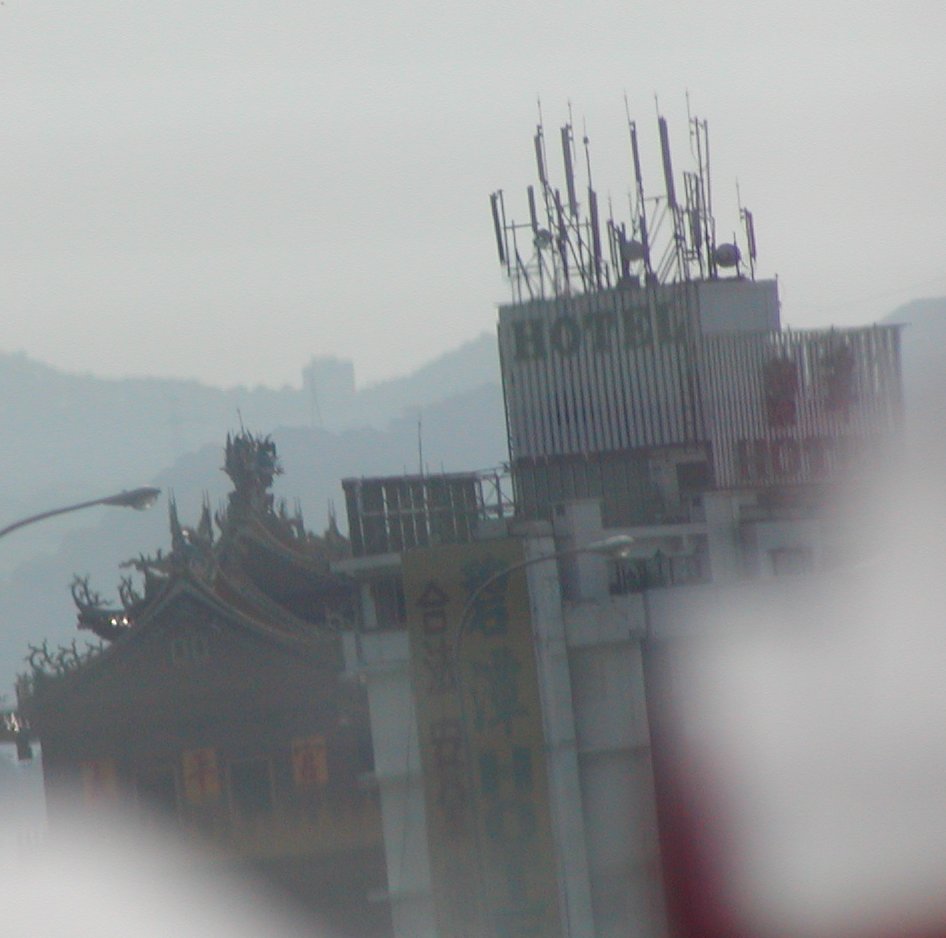

    台北火車站屋頂上基地台
    Wed Mar 28 23:30:01 CST 2012 Untitled Document

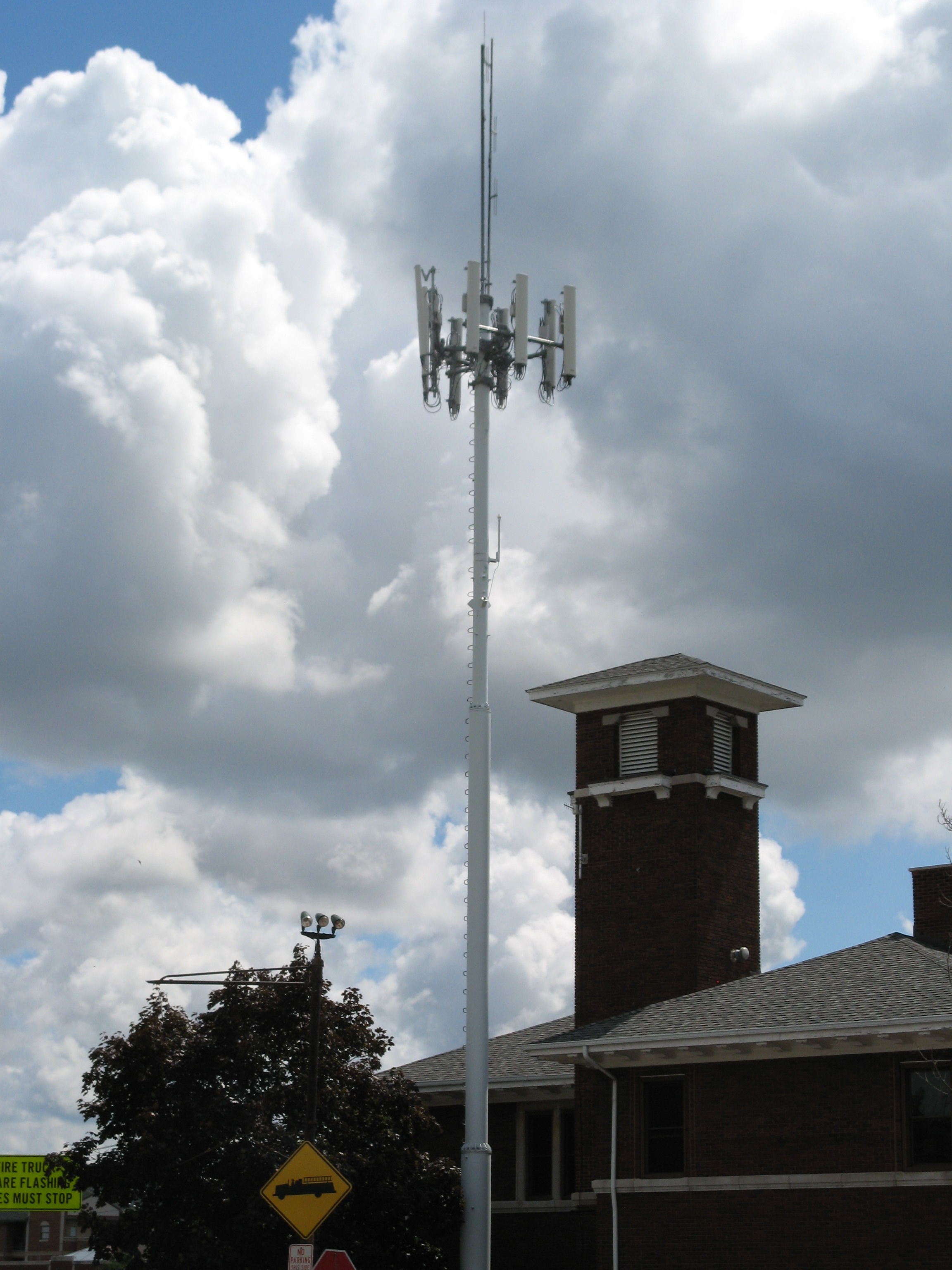

    Base Station
    Wed Mar 28 23:30:02 CST 2012 Untitled Document
    Base Station
    Wed Mar 28 23:30:02 CST 2012 Untitled Document
    Base Station
    美國芝加哥附近 基地台
    Wed Mar 28 23:30:02 CST 2012 Untitled Document

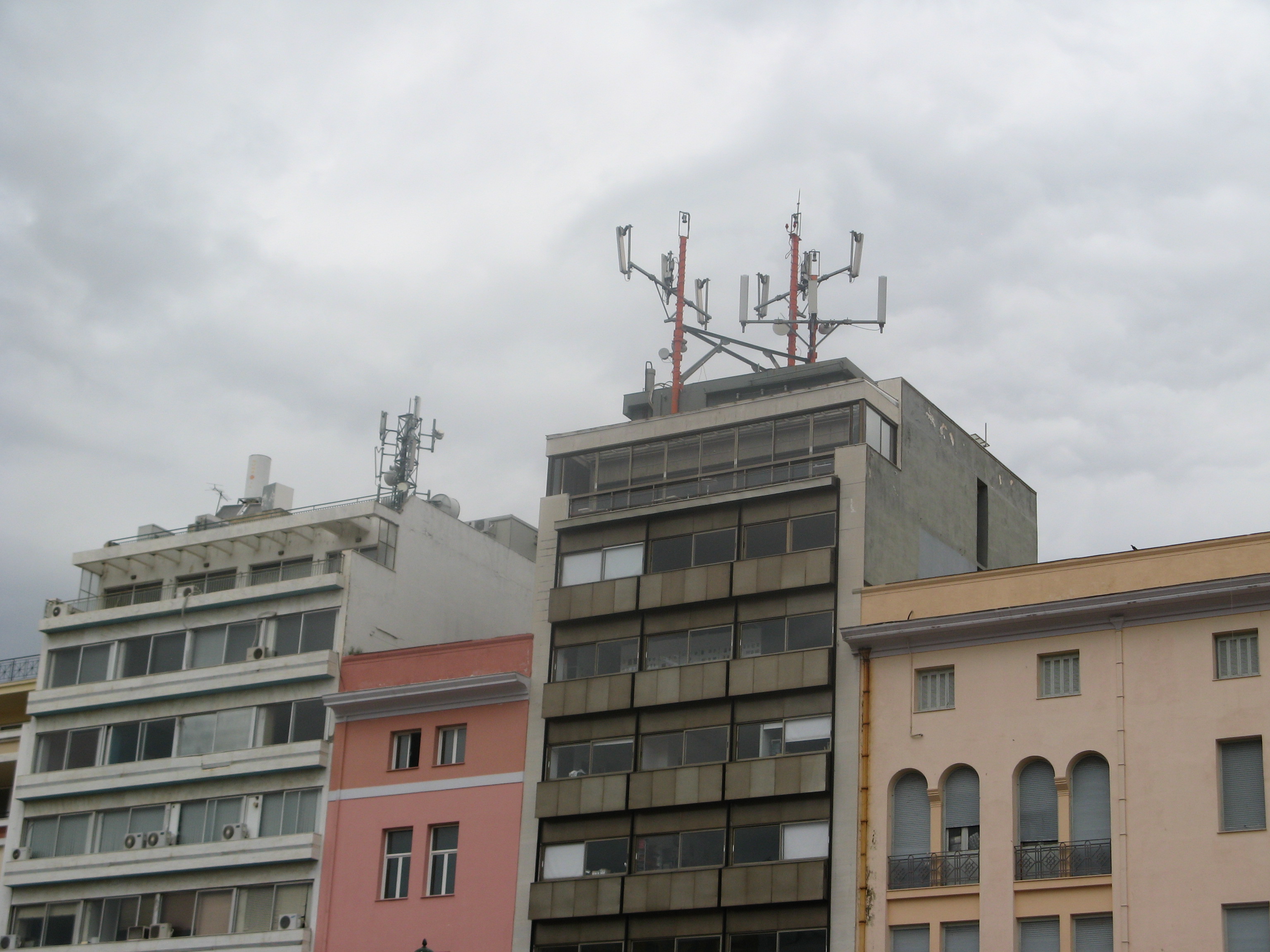

    Base Station in Athens
    希臘 雅典 基地台
    Wed Mar 28 23:30:02 CST 2012 Untitled Document
    Base Station on Mt. Royal, Montreal
    加拿大 蒙特婁 基地台
    Base Station on West Lafayette
    Wed Mar 28 23:30:02 CST 2012 Untitled Document

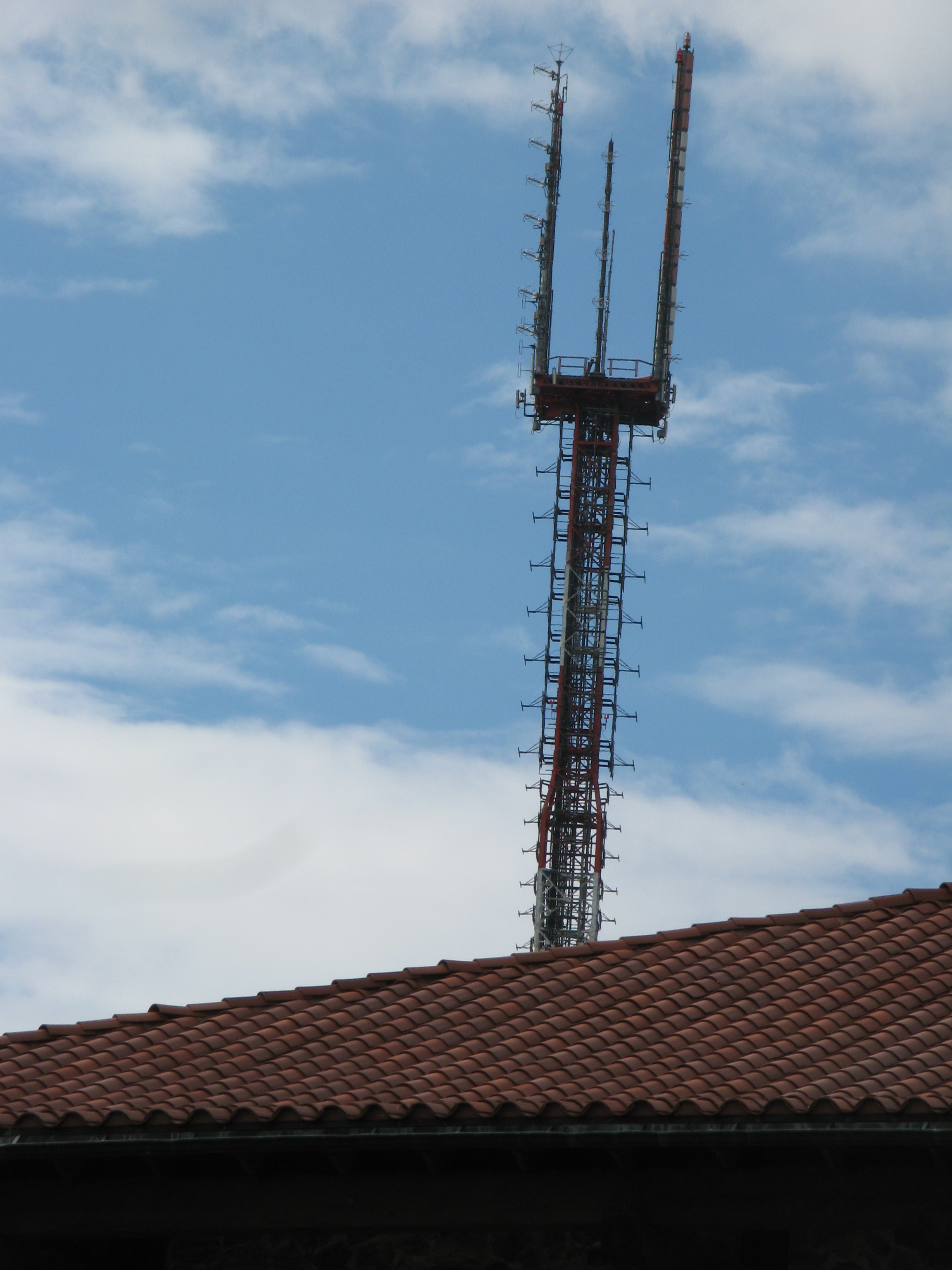

    Base Station on Mt. Royal, Montreal
    加拿大 蒙特婁 基地台
    Base Station on West Lafayette
    Wed Mar 28 23:30:02 CST 2012 Untitled Document

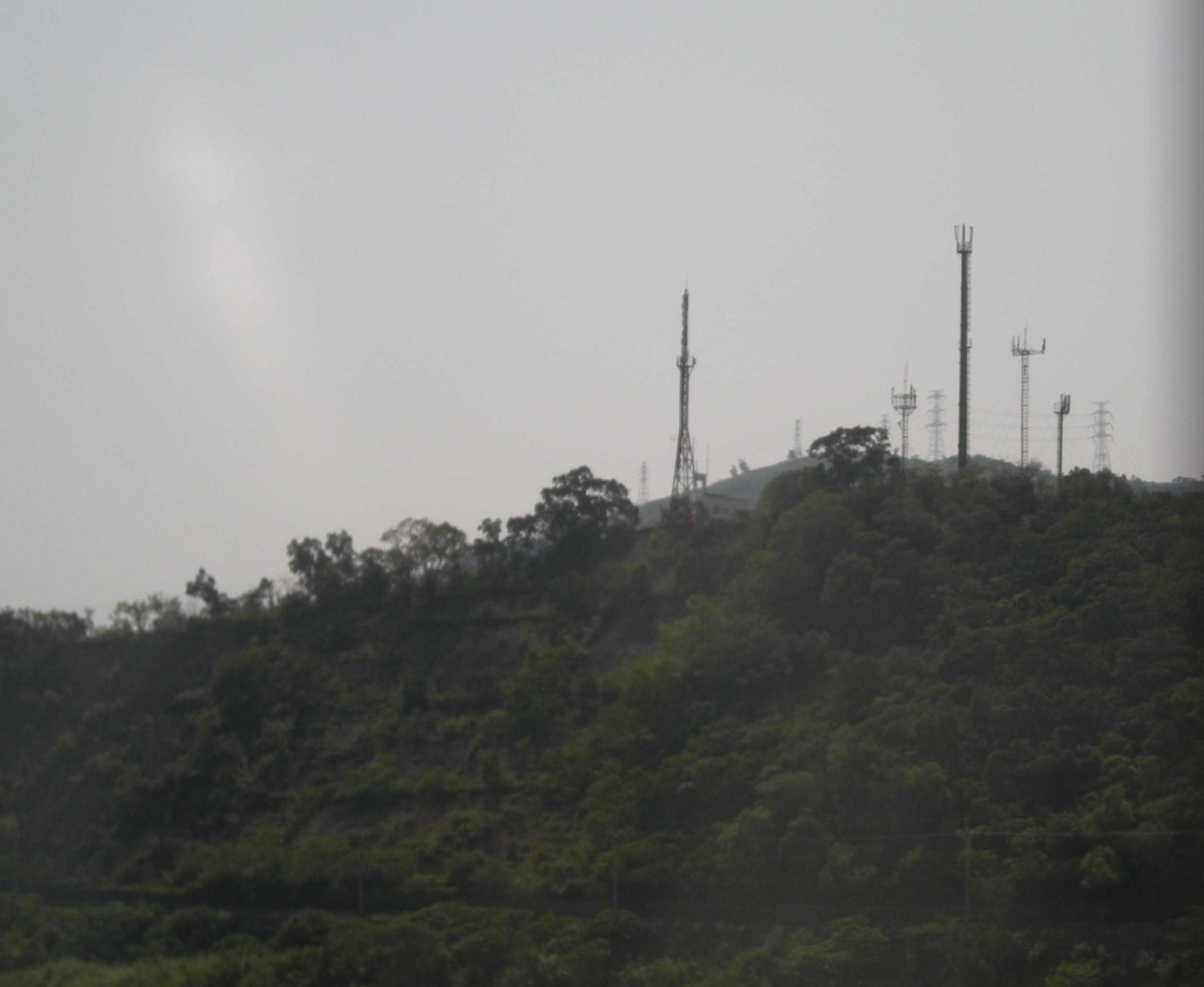

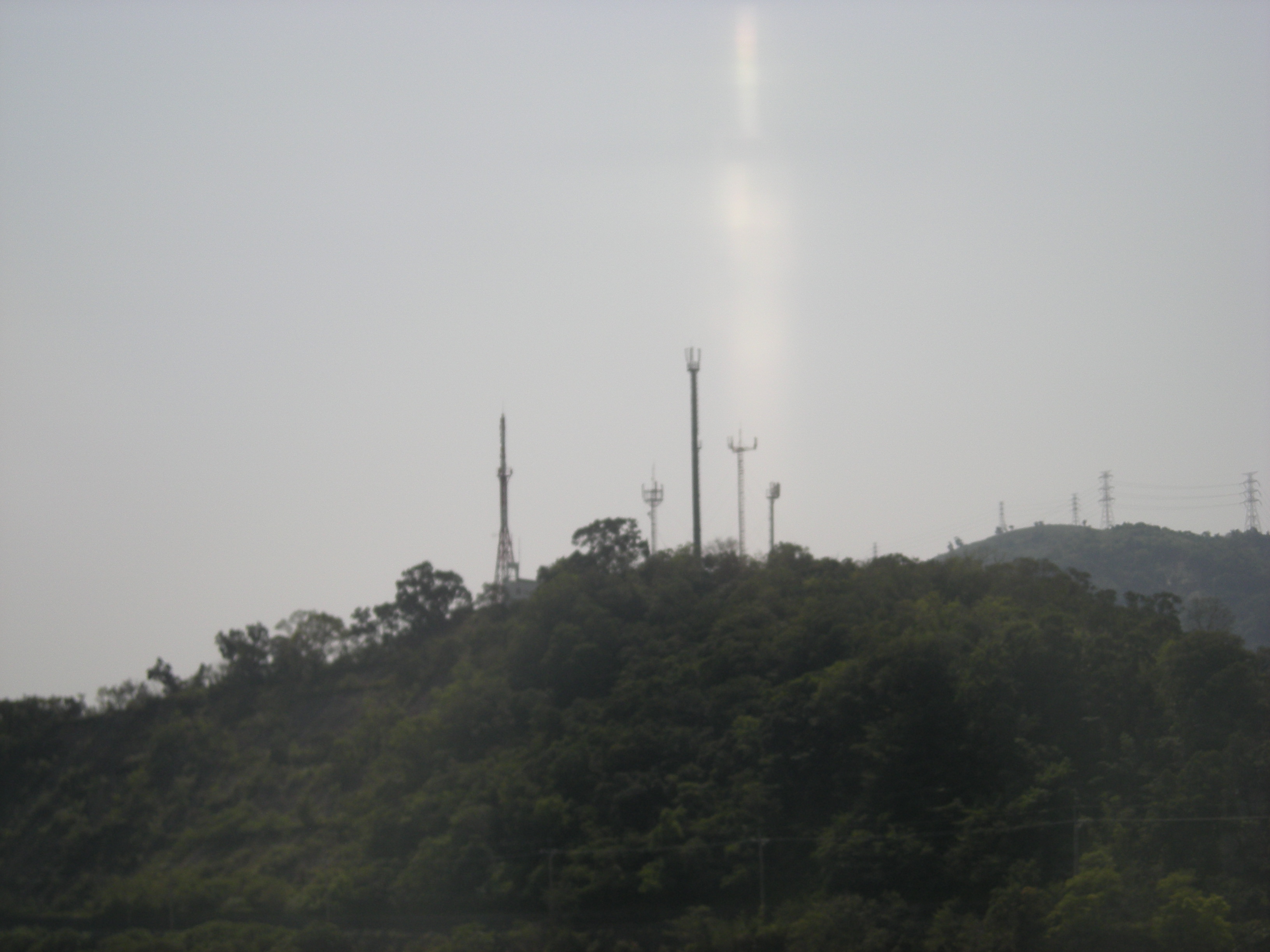

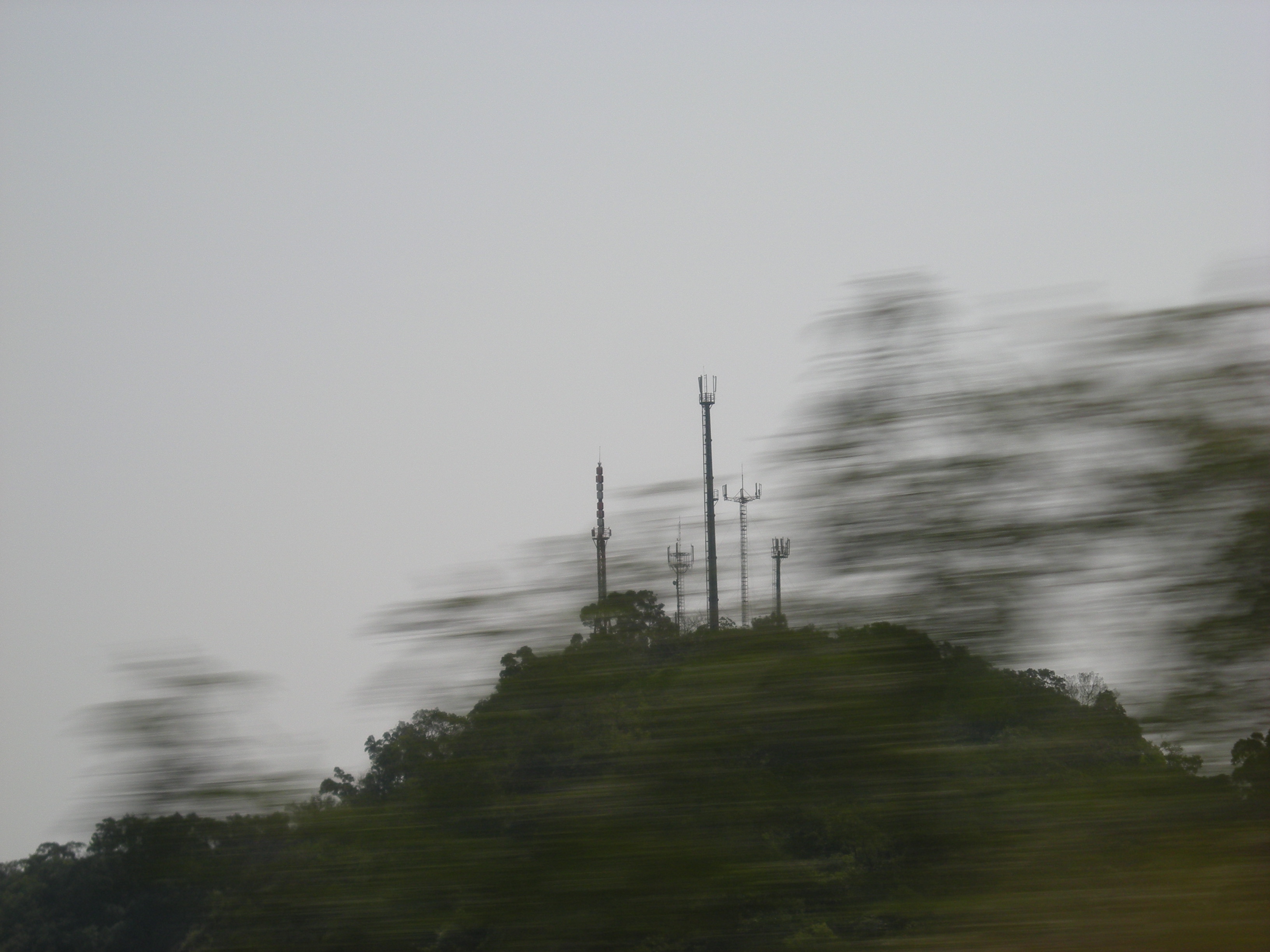

    Base Station on YiLan Railway
    宜蘭 基地台
    Wed Mar 28 23:30:02 CST 2012 Untitled Document

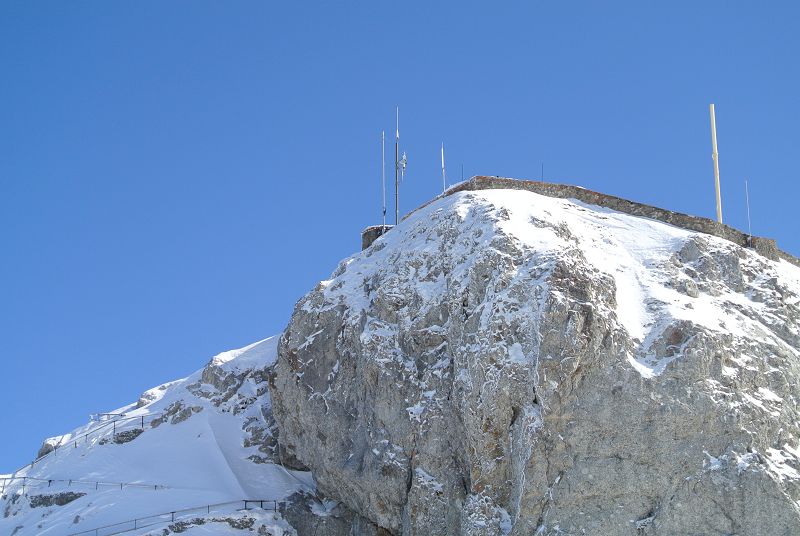

    Base Station on Alps
    瑞士 阿爾卑斯山 及 Lugano 基地台
    Wed Mar 28 23:30:04 CST 2012 Untitled Document

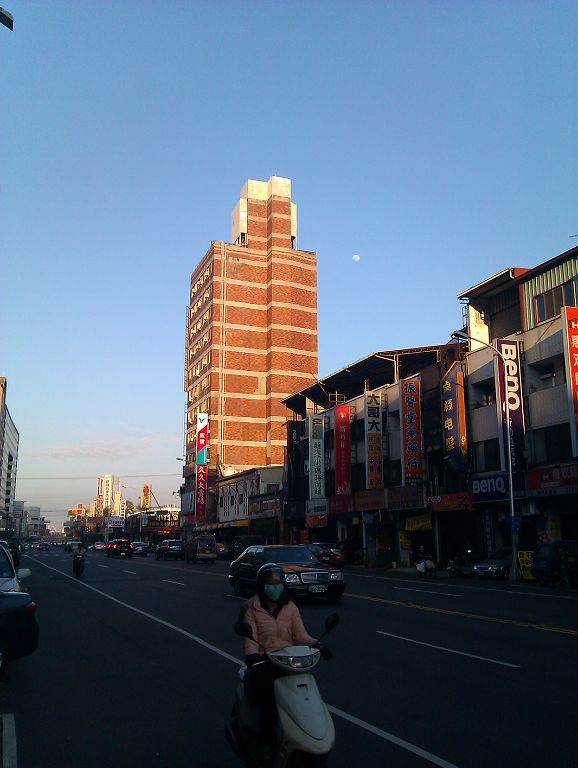

    Fake Base Station

    Wed Mar 28 23:30:04 CST 2012 Untitled Document
    Air Base Station
    Wed Mar 28 23:30:05 CST 2012 Untitled Document
    網路架構
    BS (Base Station)
    MS (Mobile Station)
    SS (Subscriber Station)
    MT (Mobile Terminal)
    MN (Mobile Node)
    Gateway to the wireline system (backhaul)
    Database (HLR/VLR)
    MSC (Mobile Switching Center)
    Wed Mar 28 23:30:06 CST 2012 Untitled Document
    Base Station and BSC

    BS includes 2 components
    BTS Base Transceiver System
    BSC Base Station Controller
  • Controllers for transceivers
  • Typically, 1 BSC controls several BTS

    • Down Link
    (Forward Link)     		BS -> MS
    Up Link
    (Reverse Link)     		MS -> BS
    Wed Mar 28 23:30:06 CST 2012 Untitled Document
    HLR/VLR Database

    Track user location and billing information
    HLR (home location register)

    Track current user locations
    VLR (visitor location register)

    Track roaming users
    HLR/VLR

    Two-tier location database for user location management Concept of “home”
    Wed Mar 28 23:30:06 CST 2012 Untitled Document

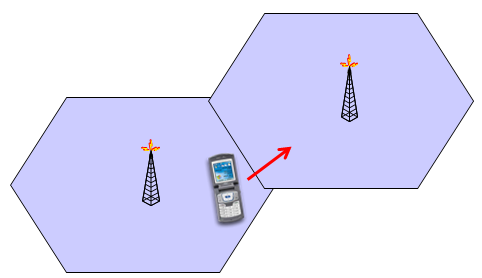

    Handoff
    Wed Mar 28 23:30:06 CST 2012 Untitled Document
    行動電話網路與固定網路互連
    Wed Mar 28 23:30:06 CST 2012 Untitled Document

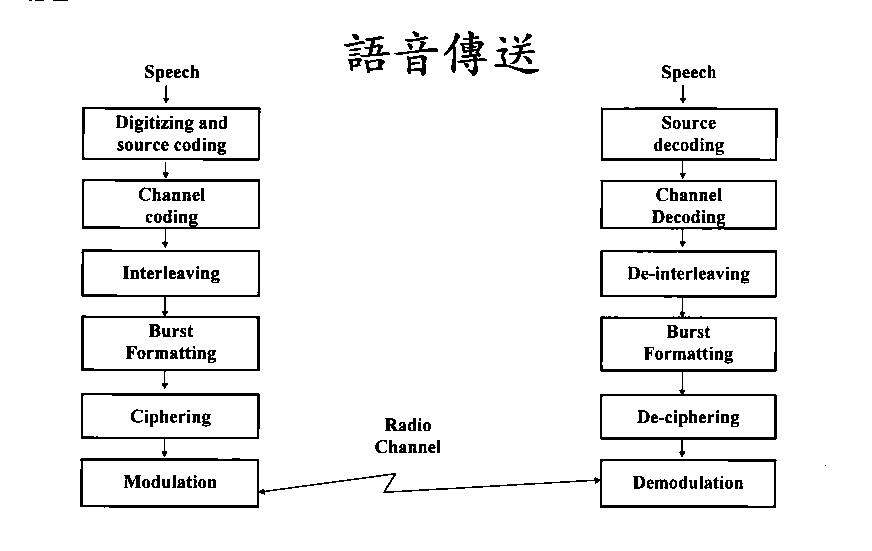

    通訊階層架構
    Wed Mar 28 23:30:07 CST 2012 Untitled Document

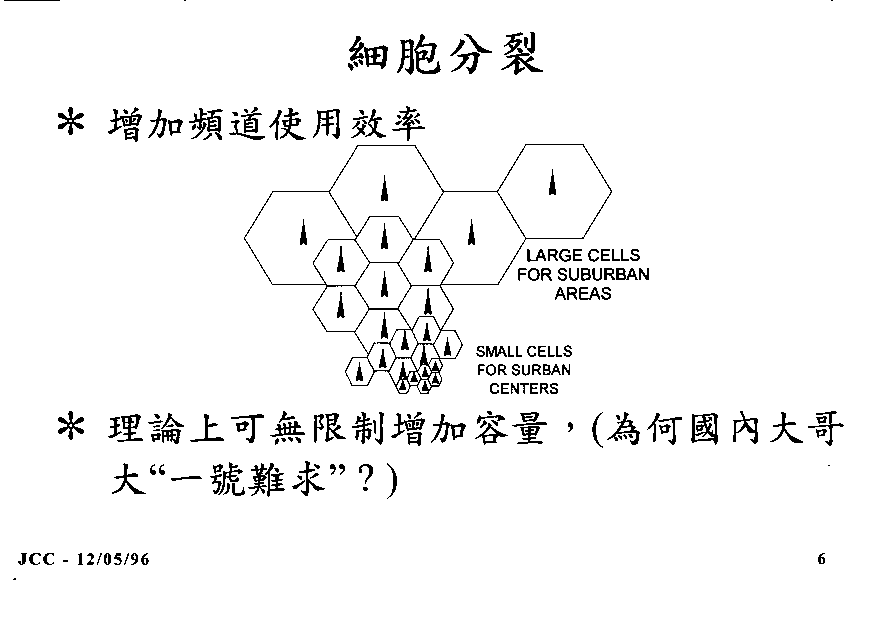

    細胞分裂
    Wed Mar 28 23:30:07 CST 2012 Untitled Document
    MultiCell
    Wed Mar 28 23:30:07 CST 2012 Untitled Document

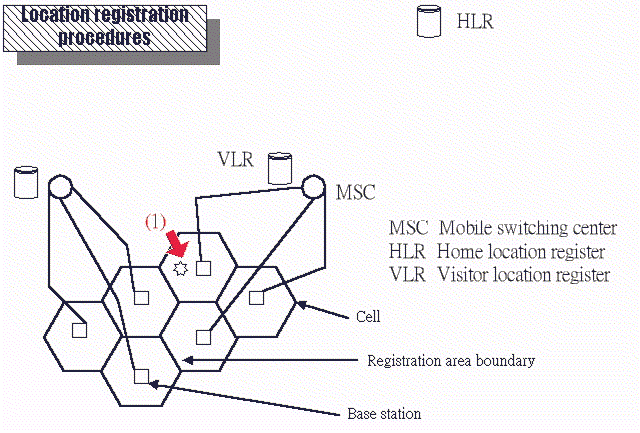

    Registration Procedure
    Wed Mar 28 23:30:07 CST 2012 Untitled Document
    Call Setup Procedure
    Wed Mar 28 23:30:07 CST 2012 Untitled Document
    Cellular System Evolution
    1G AMPS
    2G GSM, TDMA, CDMA, PCS, etc.
    3G WCDMA, TDS-CDMA (TD-SCDMA), cdma-2000
    4G LTE, WiMAX(????)
    Wed Mar 28 23:30:07 CST 2012 Untitled Document
    IS-41
    Wed Mar 28 23:30:07 CST 2012 Untitled Document
    IS-41
    Wed Mar 28 23:30:07 CST 2012 Untitled Document
    Inter-Base Station Handoff
    Wed Mar 28 23:30:07 CST 2012 Untitled Document
    Inter-System Handoff
    Wed Mar 28 23:30:07 CST 2012 Untitled Document

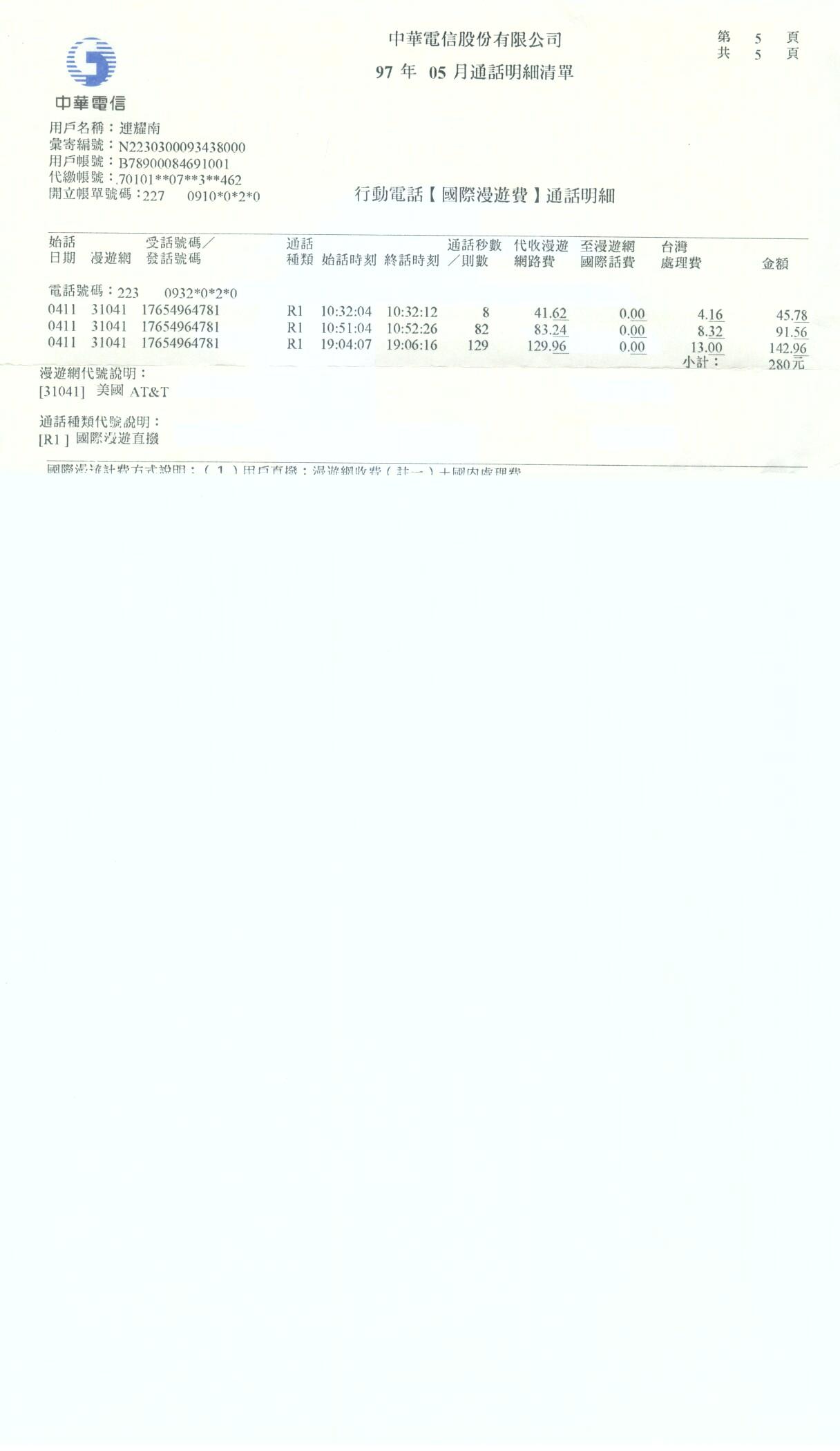

    International Roaming
    Wed Mar 28 23:30:07 CST 2012 Untitled Document
    International Roaming
    Wed Mar 28 23:30:08 CST 2012 Untitled Document
    Evolutionary Development
    Early Stage Intermediate Stage Late Stage

    Multiple stages of deployment

    Deployment evolves with subscriber growth
    Wed Mar 28 23:30:08 CST 2012 Untitled Document
    Practical deployment issues
    Selction of Base Station Location

    Antenna towers are expensive

    Local people do not like BSs
    Selection of Antenna

    Omni-directional

    Directional antenna
    Wed Mar 28 23:30:08 CST 2012 Untitled Document
    Wireless QoS - Issues
    Quality of Service (QoS)

    Achieving satisfactory wireless QoS is an important design objective
    Quality measures
    Blocking probability
    Dropping probability
    Coverage probability of receiving adequate signal level at different locations
    Transmission quality fidelity/quality of received signals
  • Bit Error Rate (BER)
  • Frame Error Rate (FER)
    • Wed Mar 28 23:30:08 CST 2012 Untitled Document
    Wireless QoS - Control
    Scheme Concerned Factors
    Admission control
  • Blocking probability
  • Reception quality
    • Co-channels Design
  • Frequency reuse factor
  • Cell planning
  • Frequency planning
    • Wed Mar 28 23:30:08 CST 2012 Untitled Document
    Analog
    Wed Mar 28 23:30:08 CST 2012 Untitled Document
    GSM
    Wed Mar 28 23:30:08 CST 2012 Untitled Document

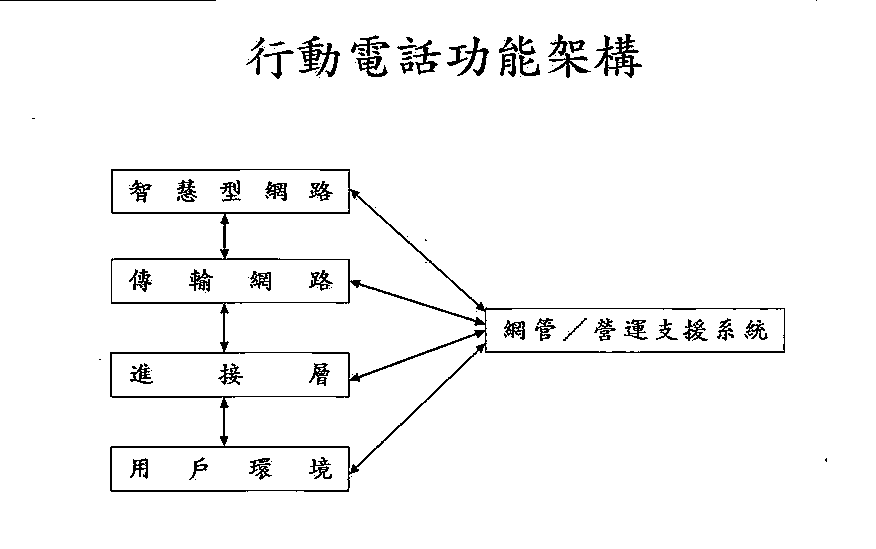

    功能架構
    Wed Mar 28 23:30:08 CST 2012 Untitled Document
    Mobility
    Terminal Mobility
    Personal Mobility
    Service Mobility
    Wed Mar 28 23:30:08 CST 2012 Untitled Document
    行動通訊癱瘓原因

    ⊕ Base stations crashed


    The most known cause
    Wed Mar 28 23:30:08 CST 2012 Untitled Document
    Mobile Communications were Vulnerable

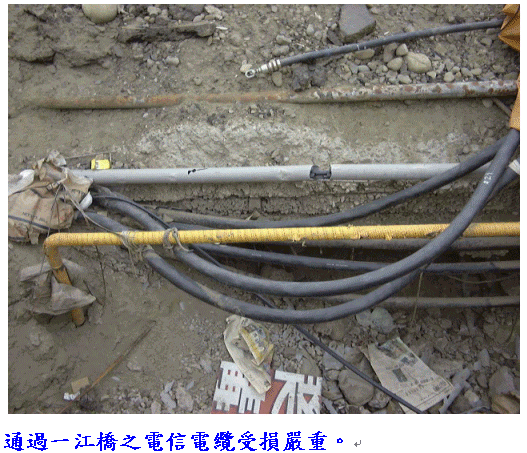

    ⊕ Trunk lines broken

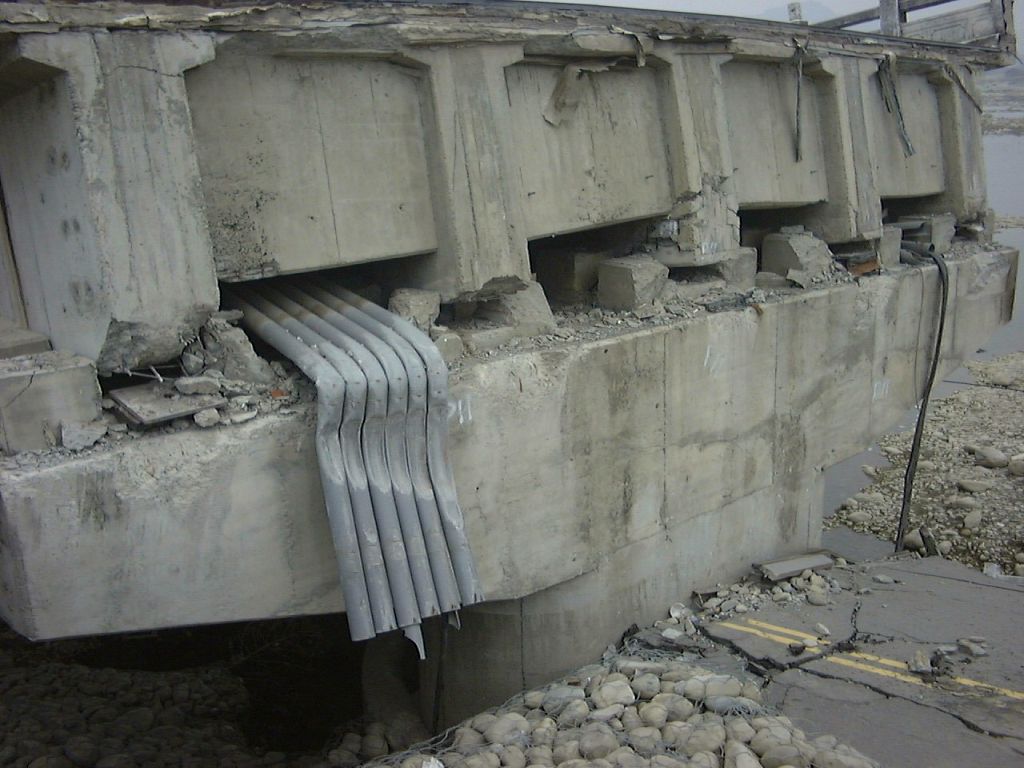

    921 Jiji Earthquake

    921 Jiji Earthquake

    921 Jiji Earthquake

    921 Jiji Earthquake

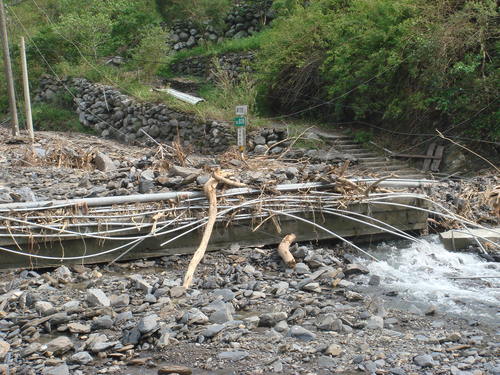

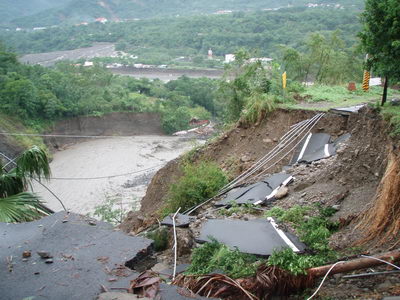

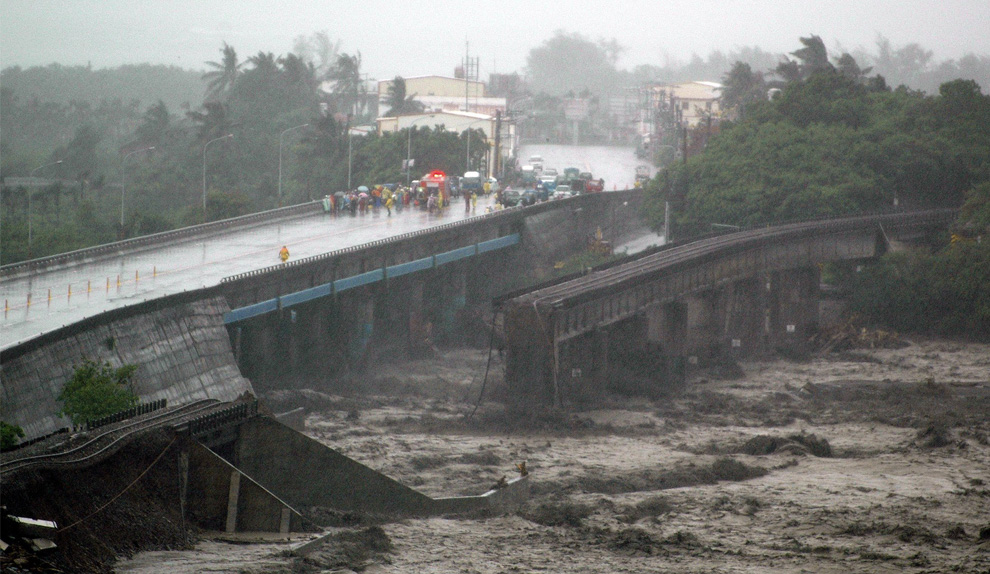

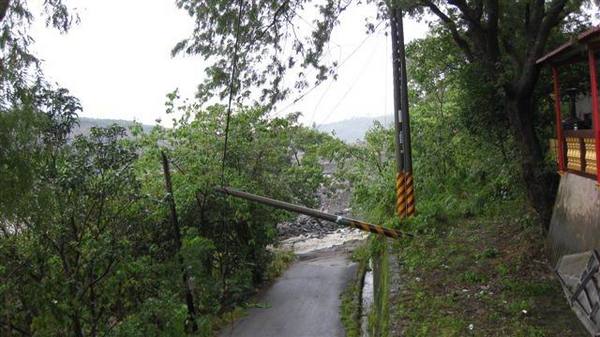

    88 Flood (8/8/2009, Taiwan)

    88 Flood (8/8/2009, Taiwan)

    88 Flood (8/8/2009, Taiwan)

    88 Flood (8/8/2009, Taiwan)
    Wed Mar 28 23:30:08 CST 2012 Untitled Document
    Mobile Communications were Vulnerable

    ⊕ Equipments (such as switches) were down due to power outage


    External Power outage

    Backup power generators were out because of fuel exhausted
    Wed Mar 28 23:30:08 CST 2012 Untitled Document
    Mobile Communications were Vulnerable

    ⊕ Equipments (such as switches) were down due to cooling system failure


    Running water outage

    water towers fell down,

    cooling pipelines broken
    Wed Mar 28 23:30:09 CST 2012 Untitled Document
    Mobile Communications were Vulnerable
    Cell phone out of power and chargers not available
    Voluntary rescue workers didn't know each other's phone number
    Voice traffic jammed

    Communication systems were overwhelmed by extremely huge traffic
    Wed Mar 28 23:30:09 CST 2012 Untitled Document
    Mobile Communications were Vulnerable
    Required a miracle for a cellular mobile system to survive even for a robust system with 99.999% reliability.

    Even if there is a miracle, volunteers do not know each other and do not have time to remember large amount of phone numbers.
    A survived cellular communication system provides not too much help either.
    Wed Mar 28 23:30:09 CST 2012 Untitled Document
    Available Options
    Walkie-Talkie The most convenient and reliable, but low popularity
    Emergency Mobile Base Stations for cell phones Not Sufficient
    Specialized Emergency Communication Systems Too expensive, need special training, for professional rescue squads only
    Voluntary MANET very popular, affordable in large scale
    Example of Specialized Emergency Communication Systems

    IMSE (Improved Mobile Subscriber Equipment)

    Military Mobile Communication Systems using UHF, VHF, SHF freq bands
    Wed Mar 28 23:30:09 CST 2012 Untitled Document
    Voluntary MANET Based P2Pnet
    Wed Mar 28 23:30:09 CST 2012 Untitled Document
    Feasibility Assessment
    Availability of WiFi-ready notebooks

    popularity of WiFi-ready notebooks >> Walkie-Talkie

    Low-power long-life lite-weight netbooks are getting popular
    Availability of powers

    users used to carry power adapter

    portable power generator are popular in Taiwan

    low fuel consumption - do not need too much fuel
    Low Stocking Cost

    No need to stock
    Easy to deploy

    Installing PC software doesn't need special training
    Wed Mar 28 23:30:09 CST 2012 Untitled Document

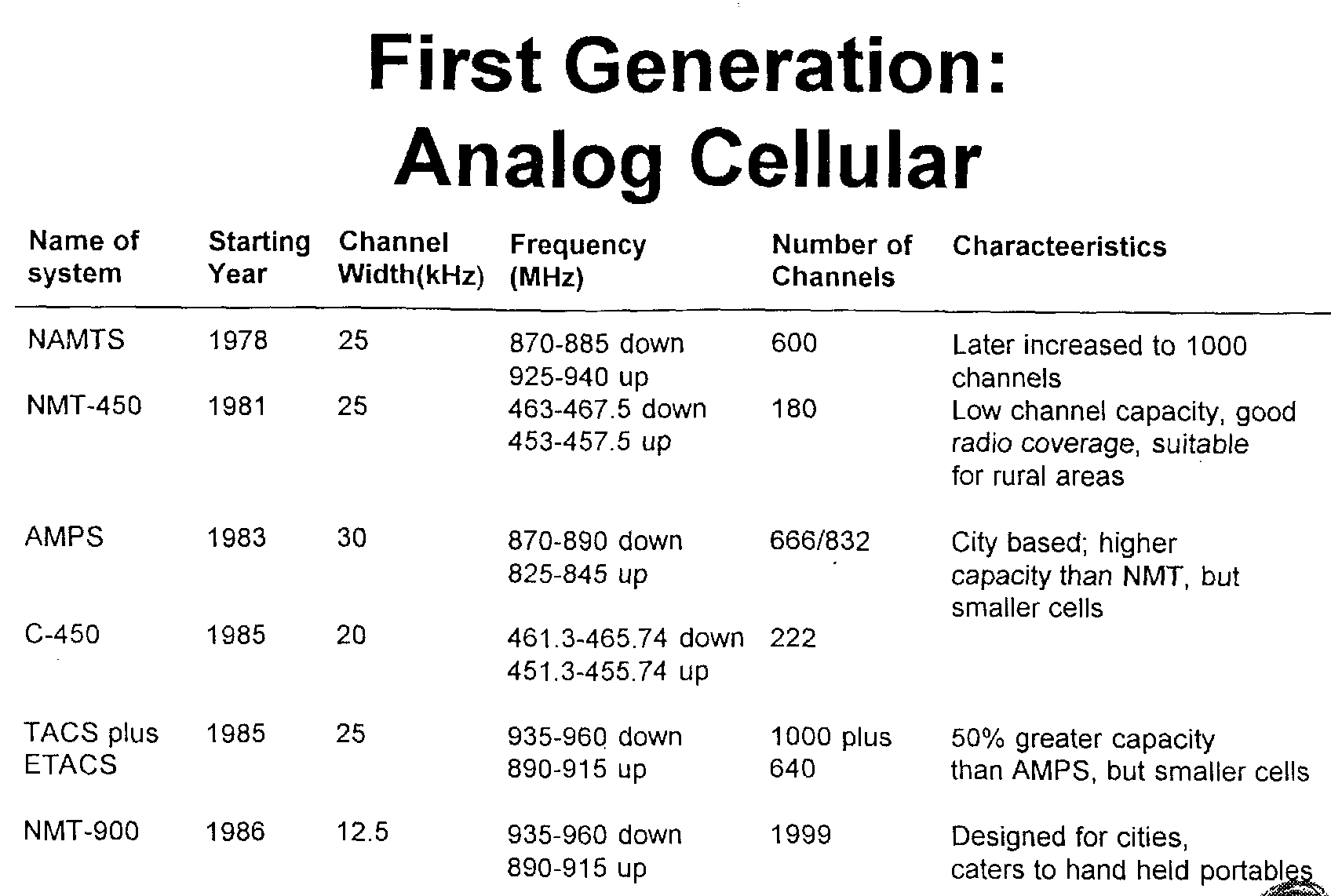

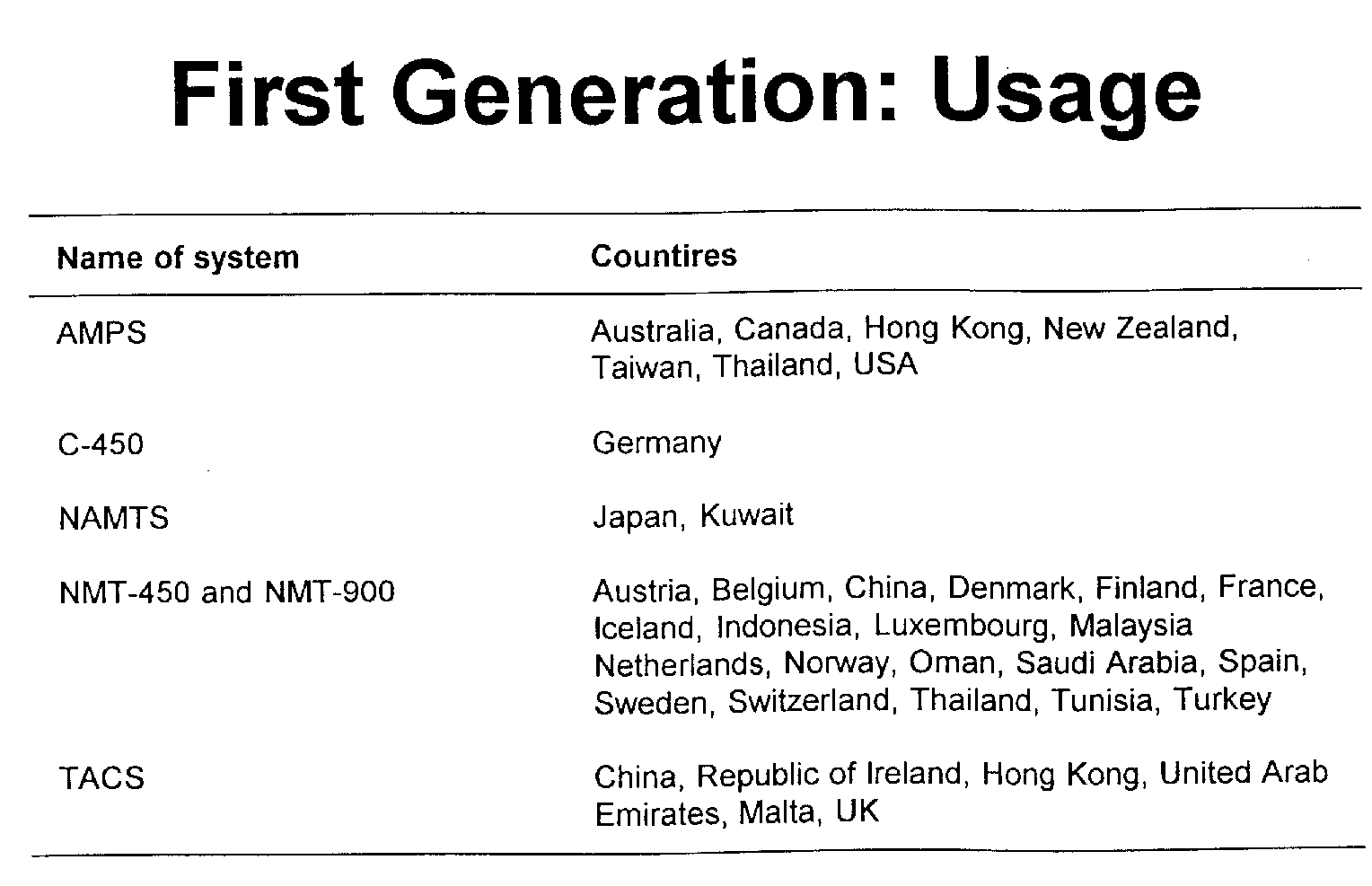

    First Generation System Deployment
    Wed Mar 28 23:30:09 CST 2012 Untitled Document
    頻譜分配
    Wed Mar 28 23:30:09 CST 2012 Untitled Document

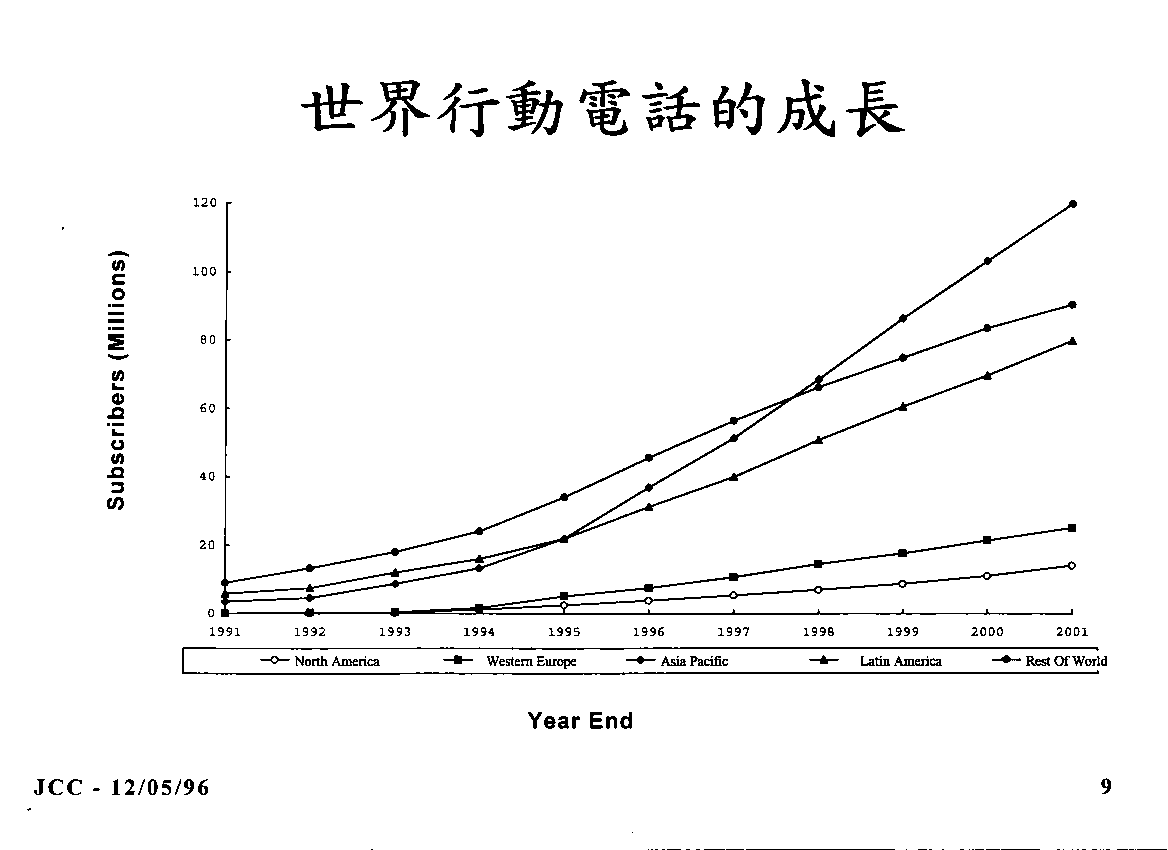

    行動電話市場成長
    Wed Mar 28 23:30:09 CST 2012 Untitled Document

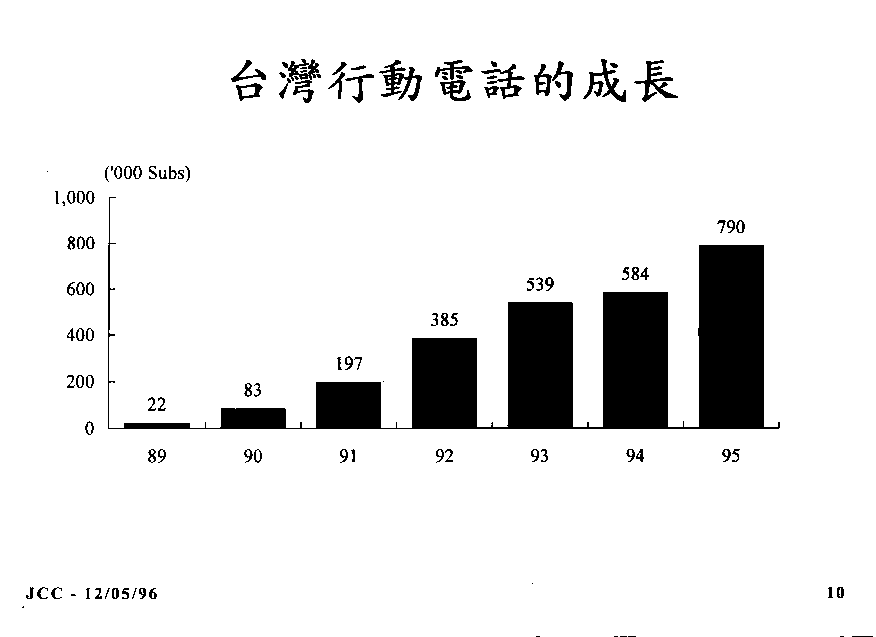

    國內行動電話市場成長
    Wed Mar 28 23:30:09 CST 2012 Untitled Document
    Dream
    Wed Mar 28 23:30:09 CST 2012 Untitled Document
    What a Complicated Business Card
    Ping-Wen Ong
MTS
Microsystem Department
101 Crawtords Corner Road
Rm 4C422
Holmdel. NJ 07733
USA
    908 9496839 (office)
908 949-60 1 0 (office fax)
800 CALLONG (toll free)
908 949-6666 (mOdem)
908 21 3-1 234 (mObile phOne)
908 21 3-1 233 (mobile fax)
800 SKYTELLZ (pager)
908 949-661 2 (voice mail)
908 666-7777 (home)
908 666-7778 (home fax)
Emaii ong@Iucent.com
Compuserve 1 2345, 67890
Home page httpilwww. Iucent. com/ong
    Wed Mar 28 23:30:10 CST 2012 Untitled Document
    Expected Solution

    Compitable with multiple standard

    Easy to Operate

    Easy to Upgrade

    Worldwide Access

    Long Operating Life

    Low Cost
    Wed Mar 28 23:30:10 CST 2012 Untitled Document

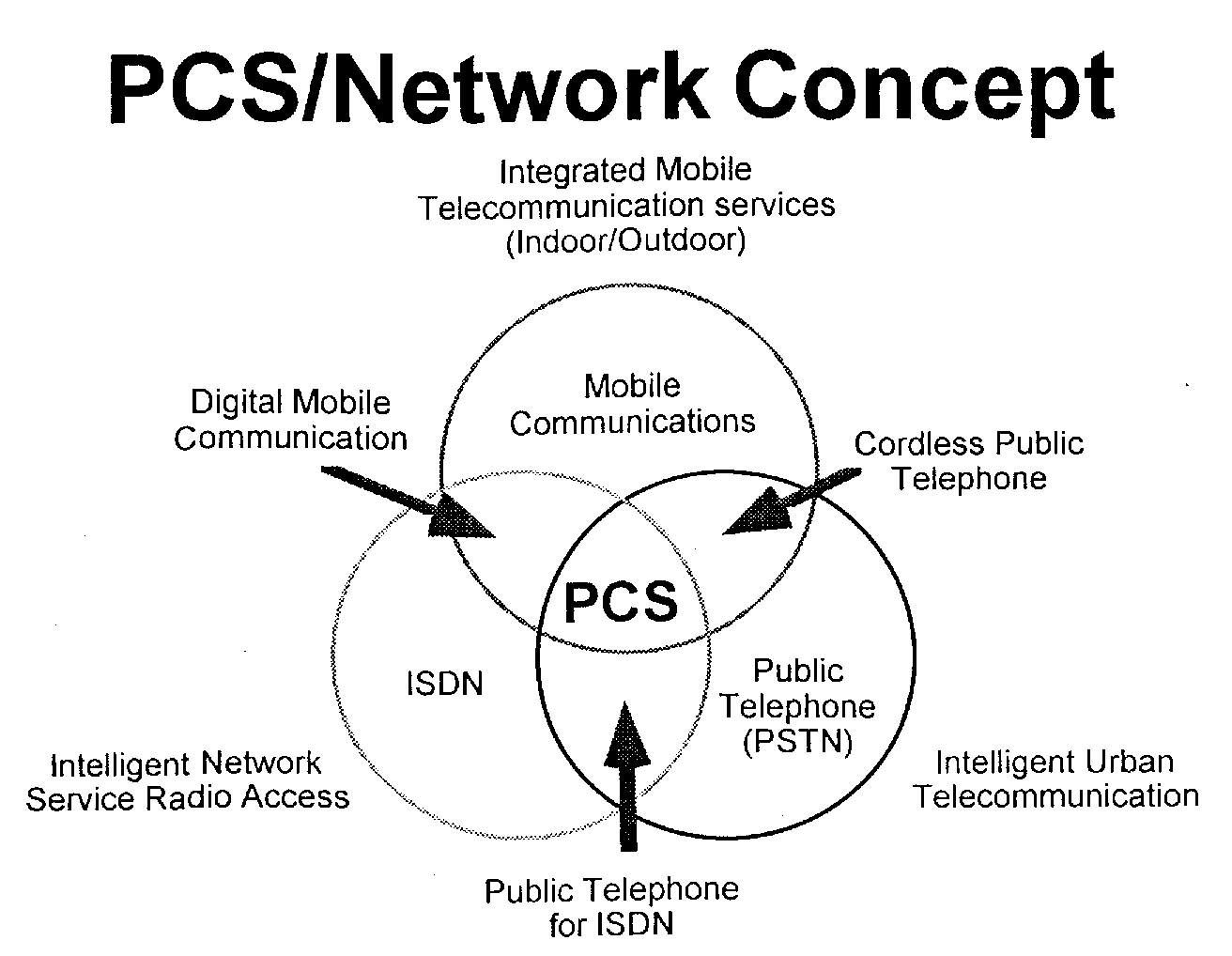

    PCS Network Concept
    Wed Mar 28 23:30:10 CST 2012 Untitled Document

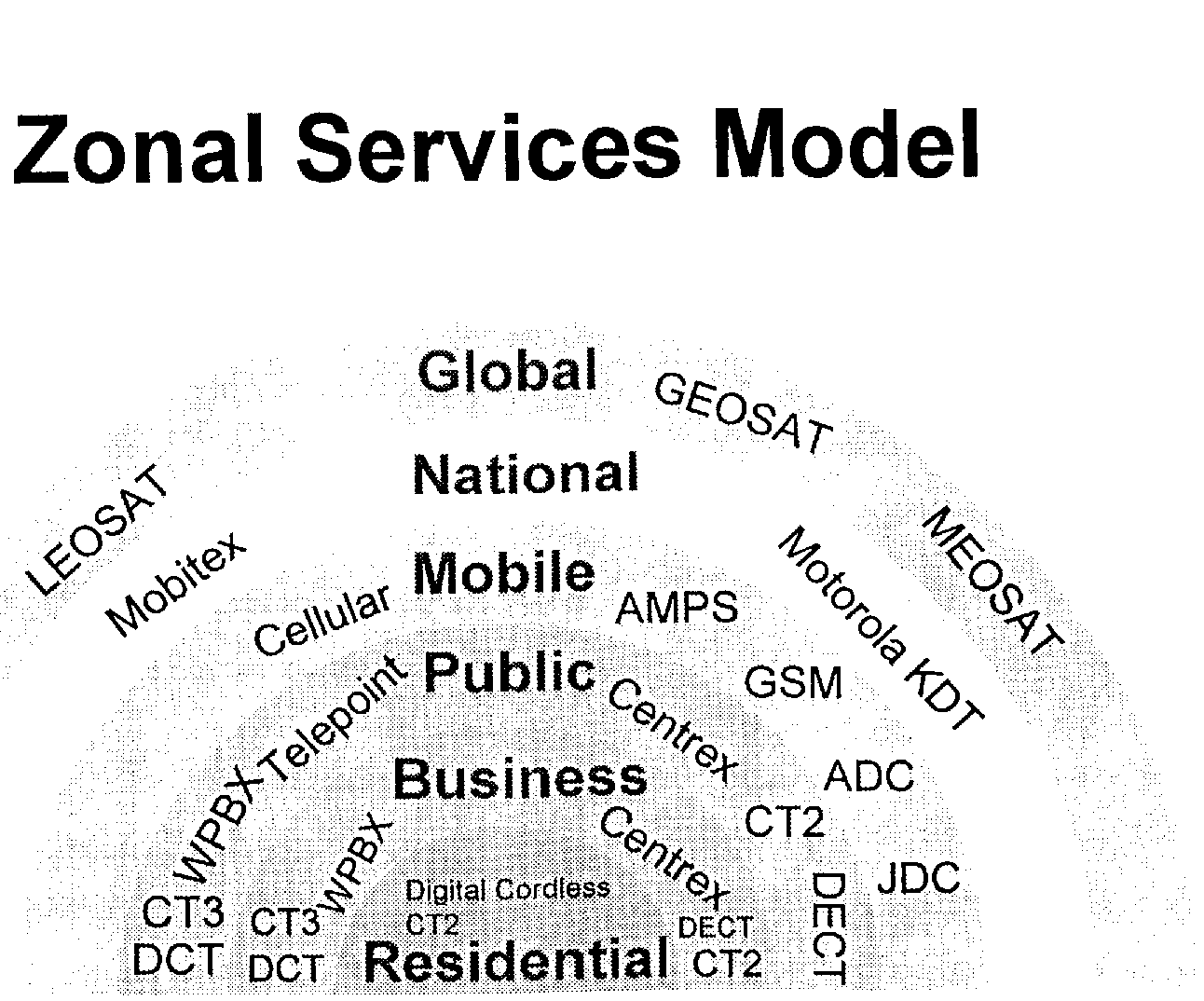

    Zonal Service Model
    Wed Mar 28 23:30:10 CST 2012 Untitled Document

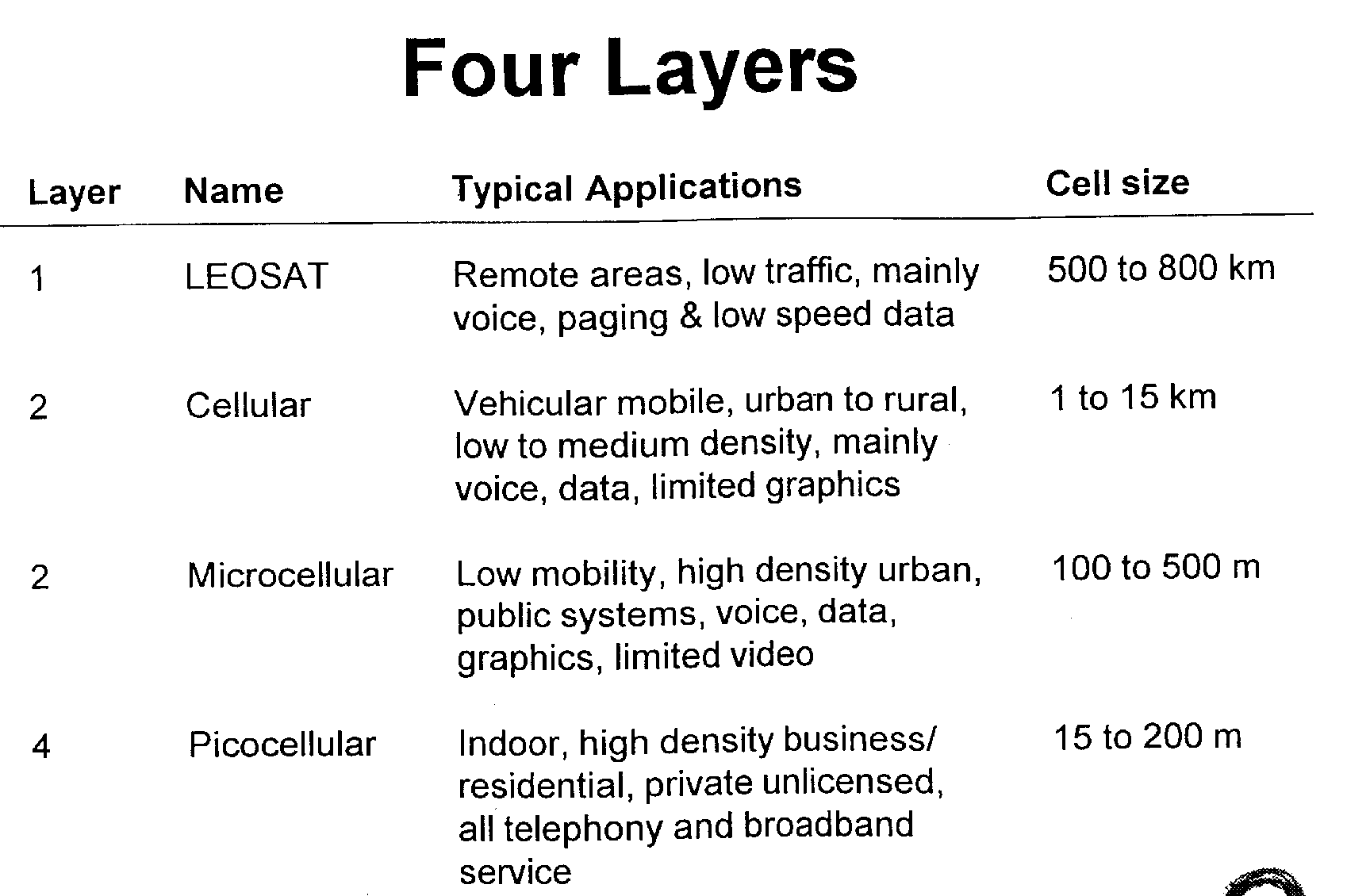

    四層架構
    Wed Mar 28 23:30:10 CST 2012
