CallModel

Half Call FSM Model

State

State

Finite State Machine

Finite State Machine Diagram

Finite State Machine in a Switch

Basic Call Model

State Model

State Model

State Model

State Model

RTS (Run Time System)

POTS Call Model

POTS Call Model

POTS Call Model

POTS Call Model

POTS Call Model

POTS Call Model

Call Waiting

Simulator Code

Untitled Document

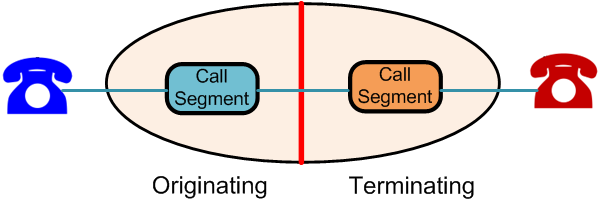

Half Call FSM Model
Wed Mar 16 00:25:15 CST 2011

Untitled Document

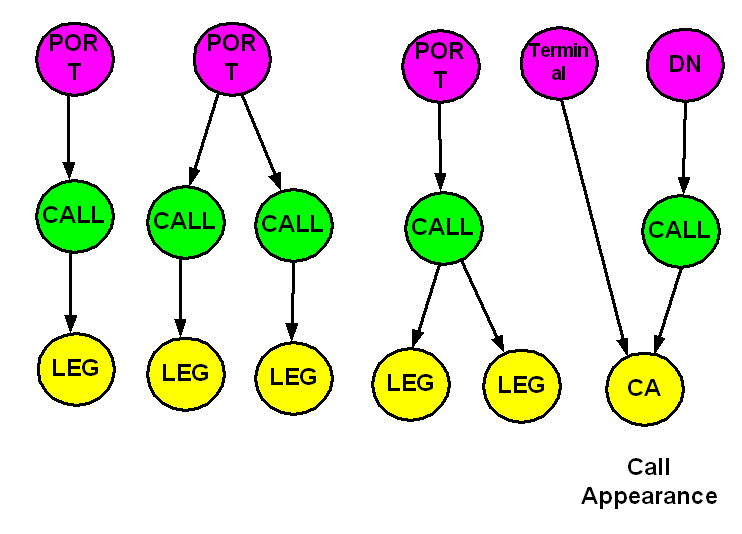

State
Wed Mar 16 00:25:16 CST 2011 Untitled Document
State
Wed Mar 16 00:25:17 CST 2011 Untitled Document

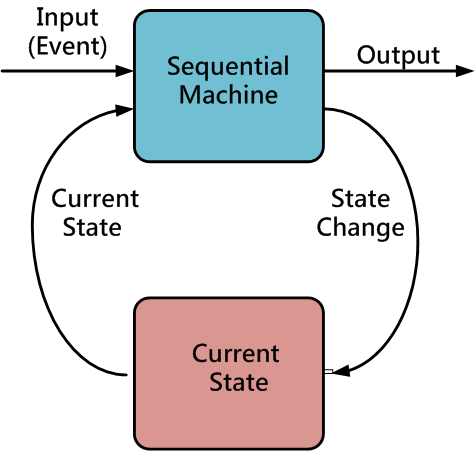

Finite State Machine
Output 由input 及 current state 決定
Wed Mar 16 00:25:17 CST 2011 Untitled Document

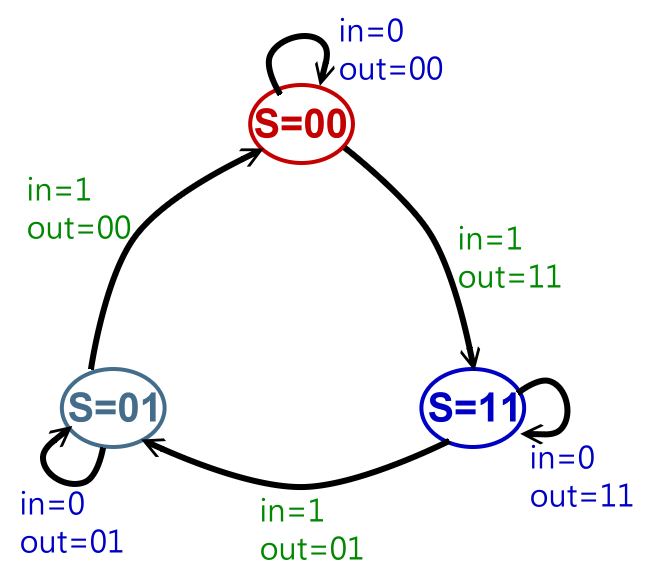

Finite State Machine Diagram
輸入 現在狀態 下一狀態 輸出
0 00 00 00
0 01 01 01
0 11 11 11
1 00 11 11
1 01 00 00
1 11 01 01
Wed Mar 16 00:25:18 CST 2011 Untitled Document
Finite State Machine in a Switch
Wed Mar 16 00:25:19 CST 2011 Untitled Document

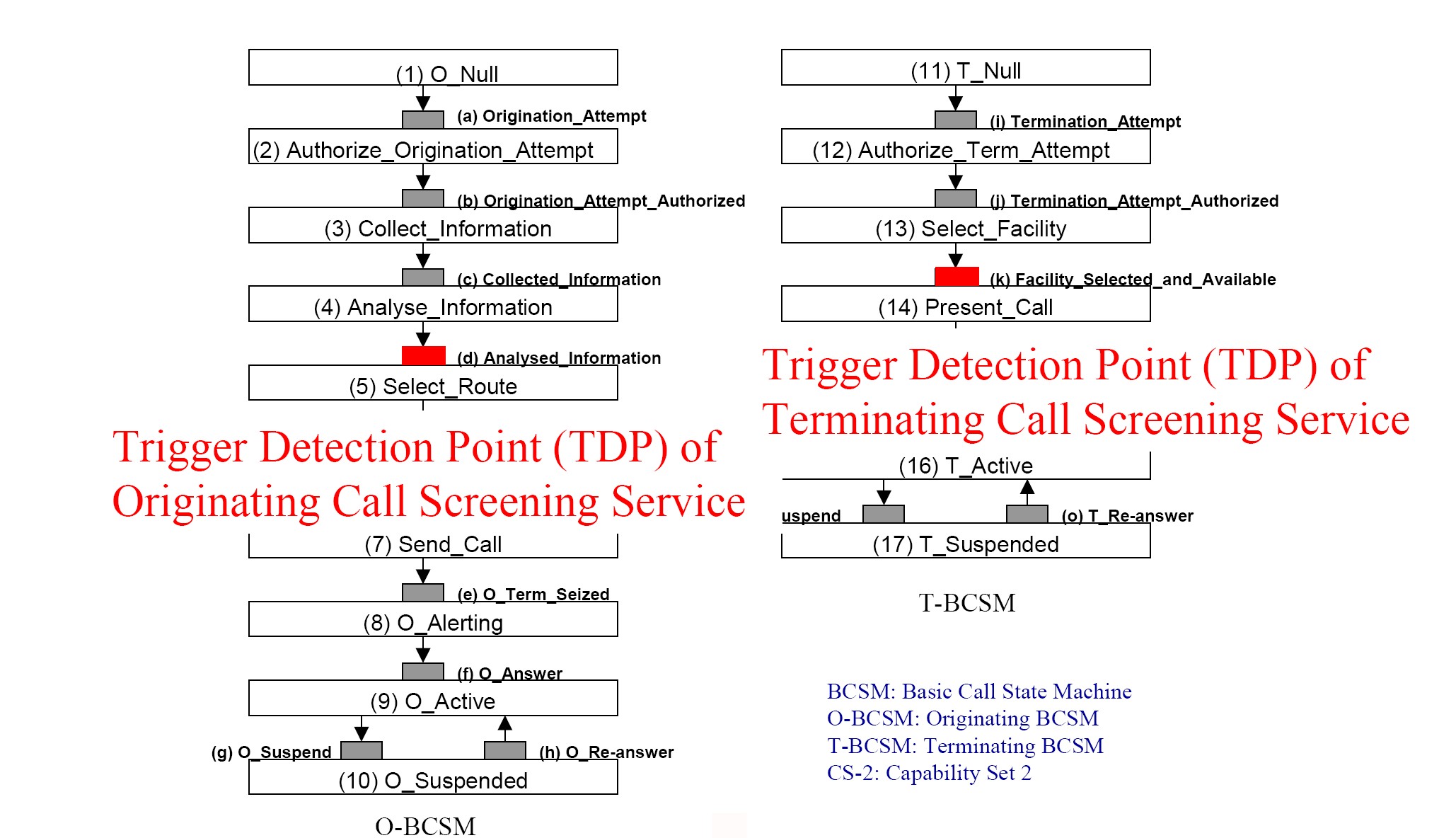

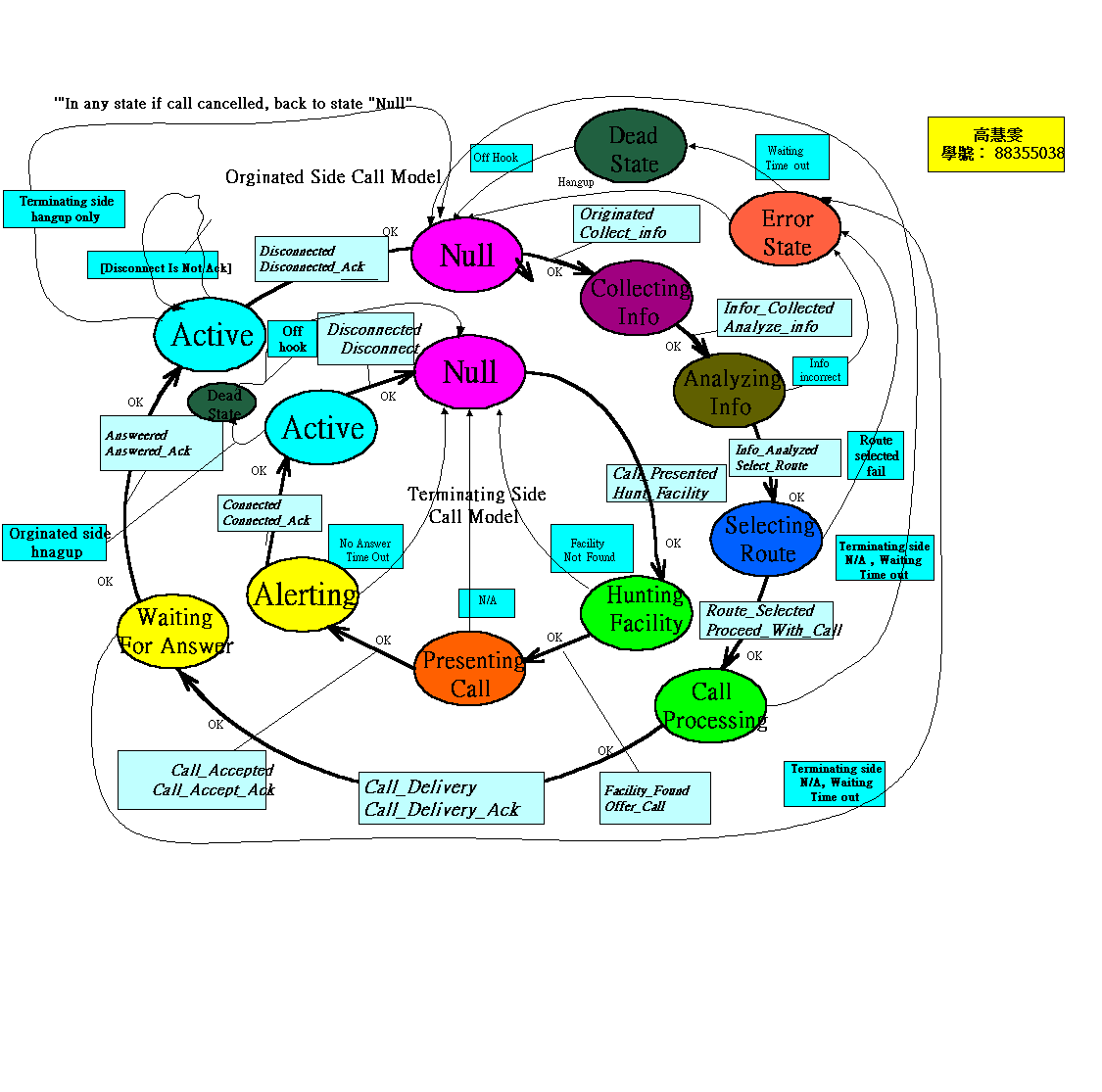

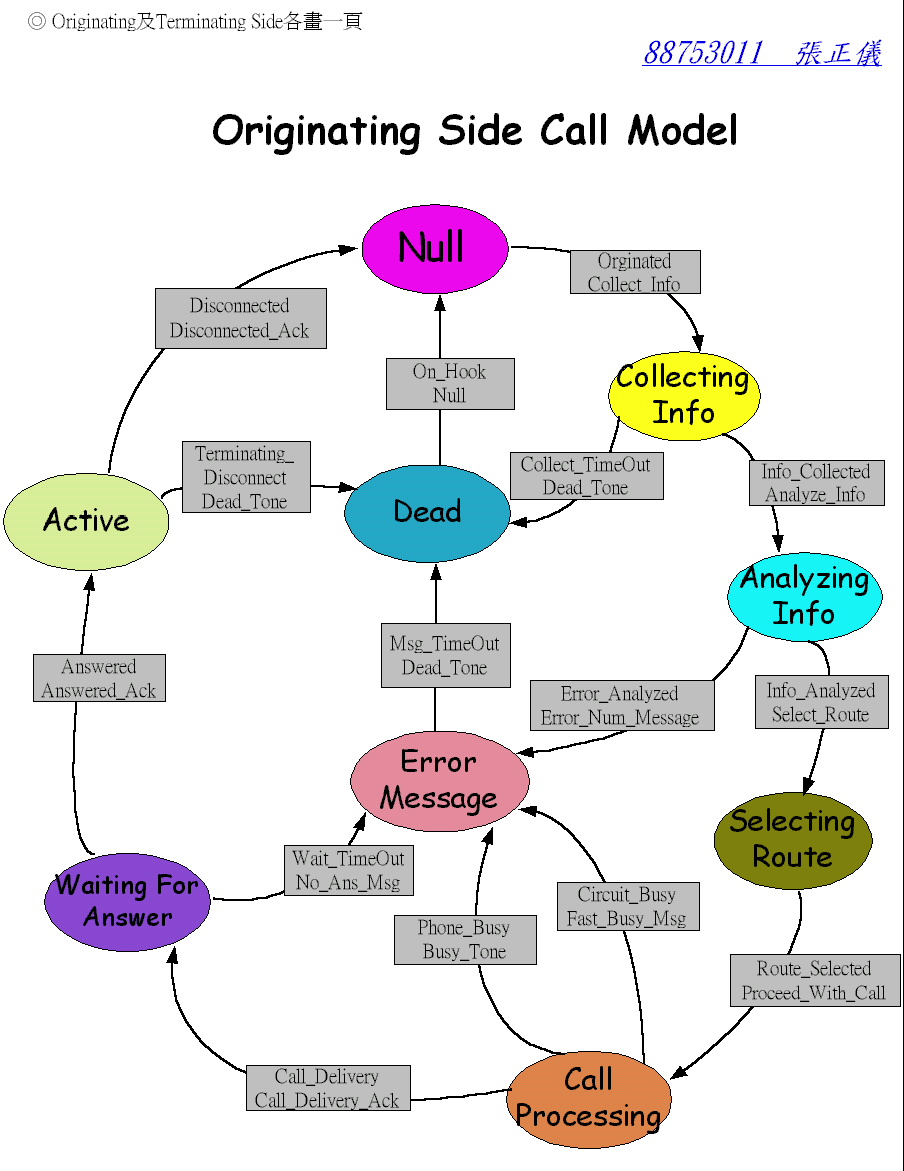

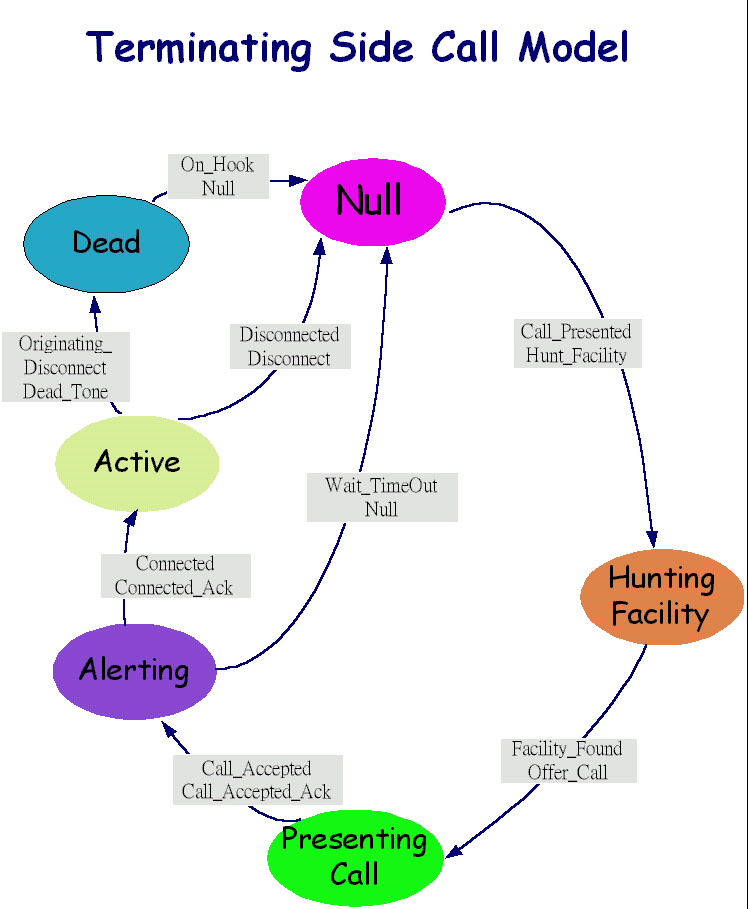

Basic Call Model
Originating FSM Simulation (Simple)
Terminating FSM Simulation (Simple)
Originating FSM Simulation (Basic)
Terminating FSM Simulation (Basic)
Wed Mar 16 00:25:19 CST 2011 Untitled Document

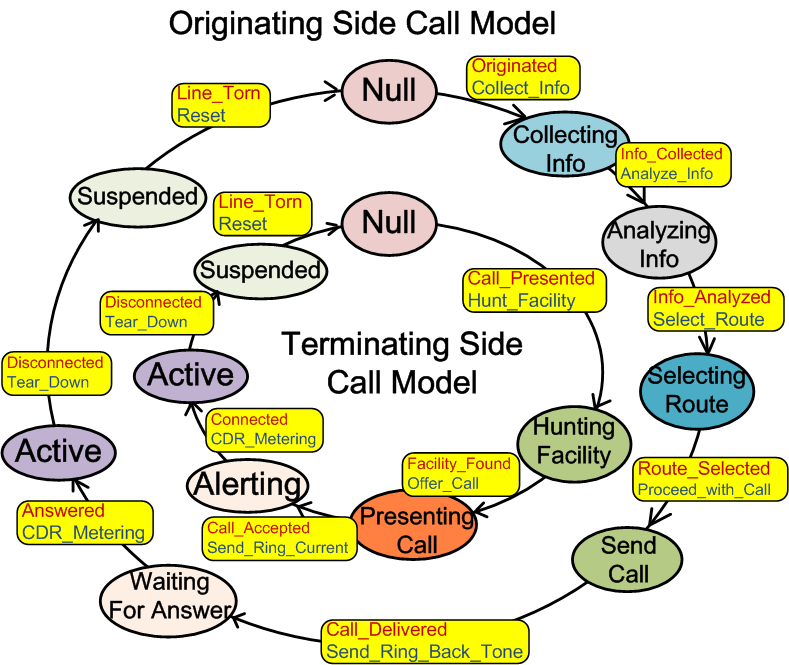

State Model
Wed Mar 16 00:25:19 CST 2011 Untitled Document
State Model
Wed Mar 16 00:25:20 CST 2011 Untitled Document

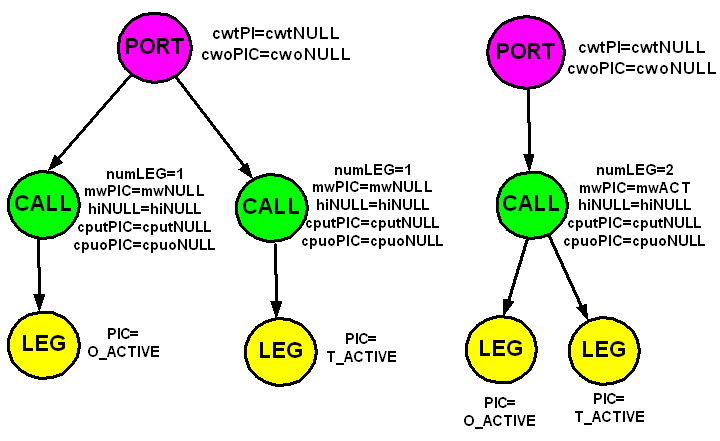

State Model
Wed Mar 16 00:25:20 CST 2011 Untitled Document
State Model
Wed Mar 16 00:25:21 CST 2011 Untitled Document

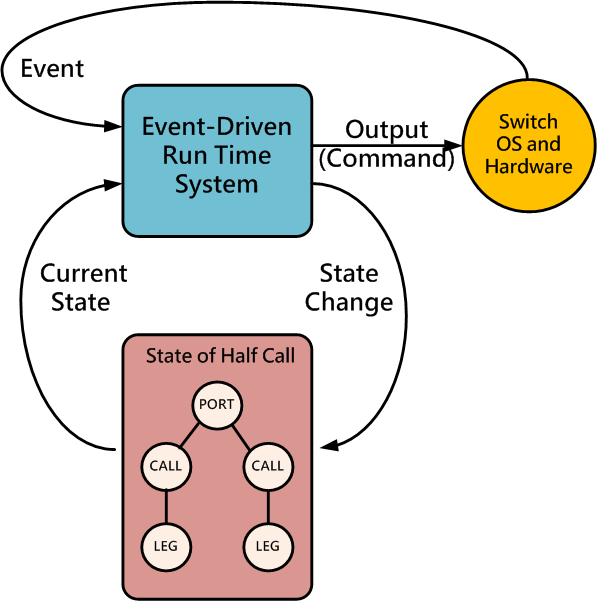

RTS (Run Time System)
Wed Mar 16 00:25:21 CST 2011 Untitled Document

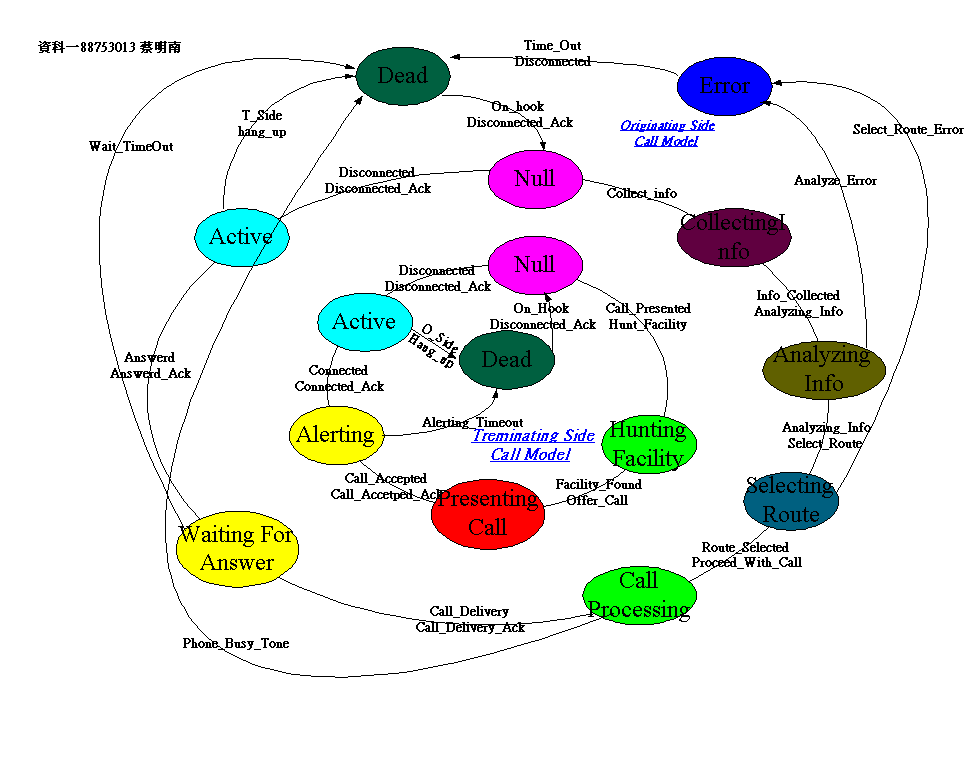

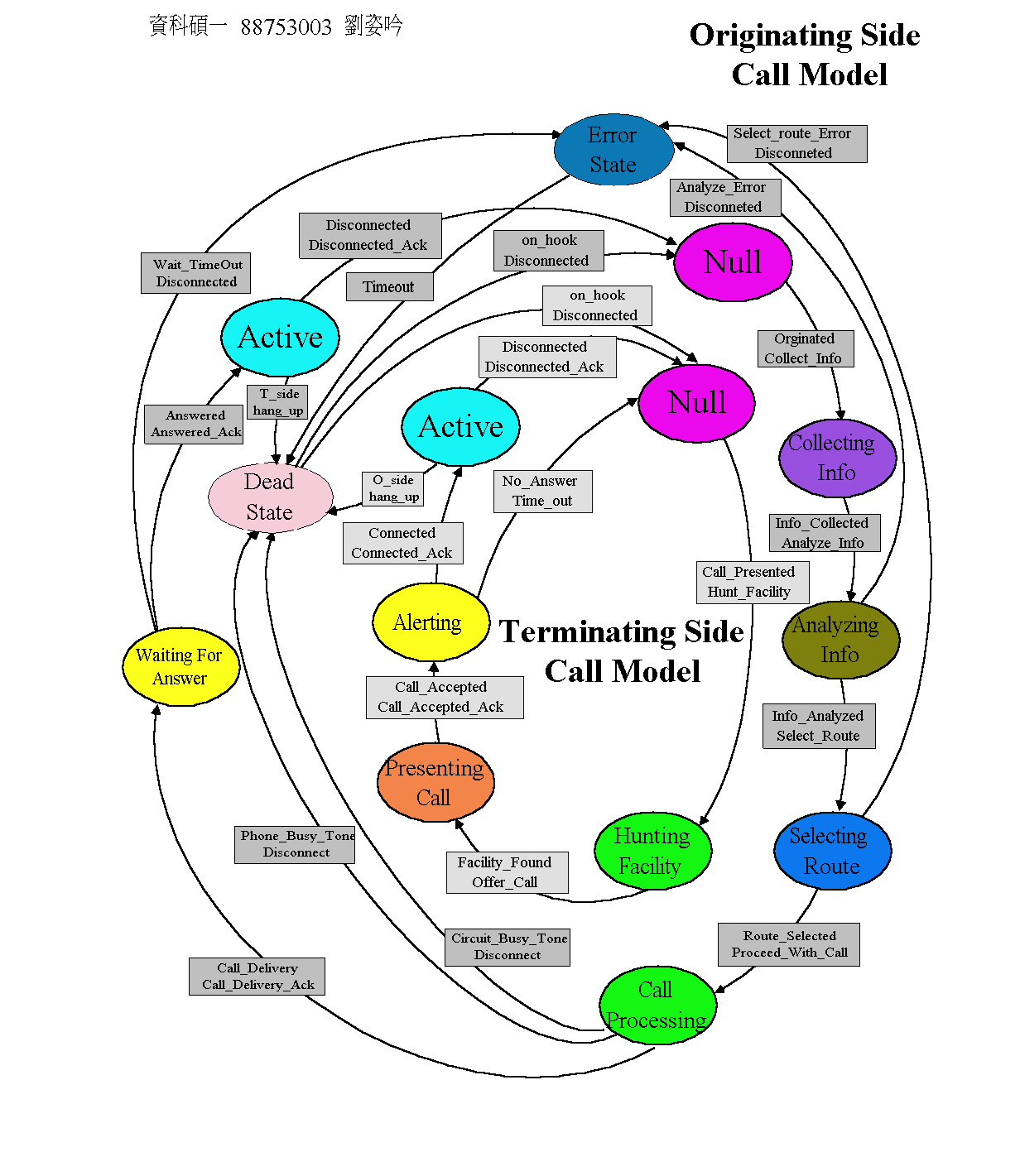

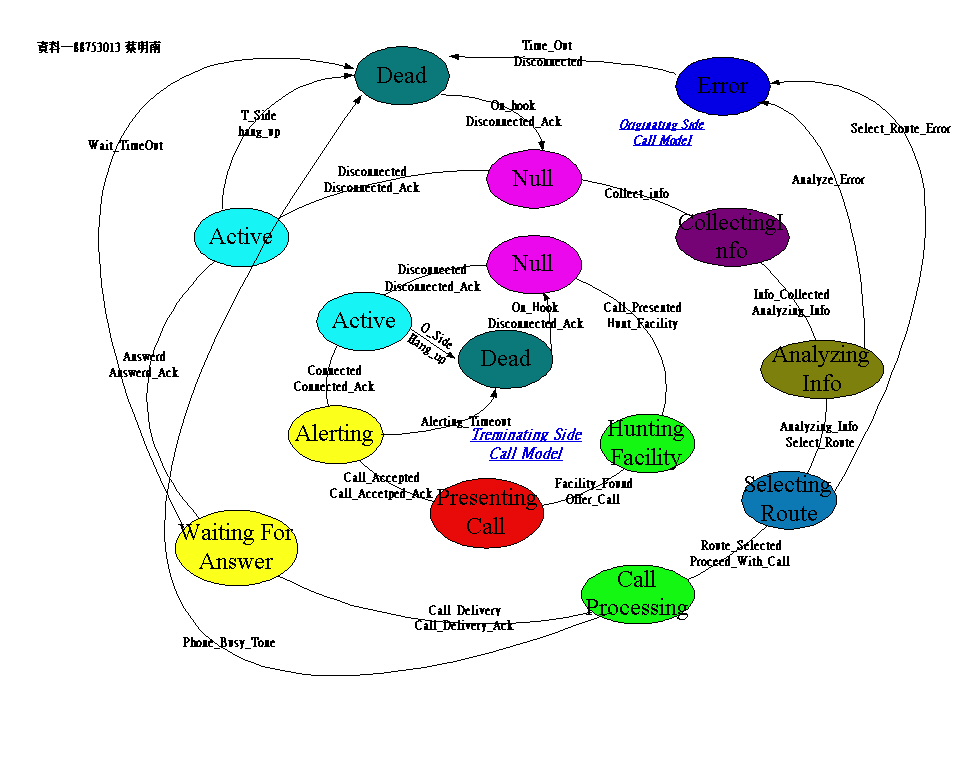

POTS Call Model
Wed Mar 16 00:25:22 CST 2011 Untitled Document
POTS Call Model
Wed Mar 16 00:25:22 CST 2011 Untitled Document
POTS Call Model
Wed Mar 16 00:25:23 CST 2011 Untitled Document
POTS Call Model
Wed Mar 16 00:25:23 CST 2011 Untitled Document
POTS Call Model


Wed Mar 16 00:25:24 CST 2011


Untitled Document









  POTS Call Model





Wed Mar 16 00:25:24 CST 2011


Untitled Document

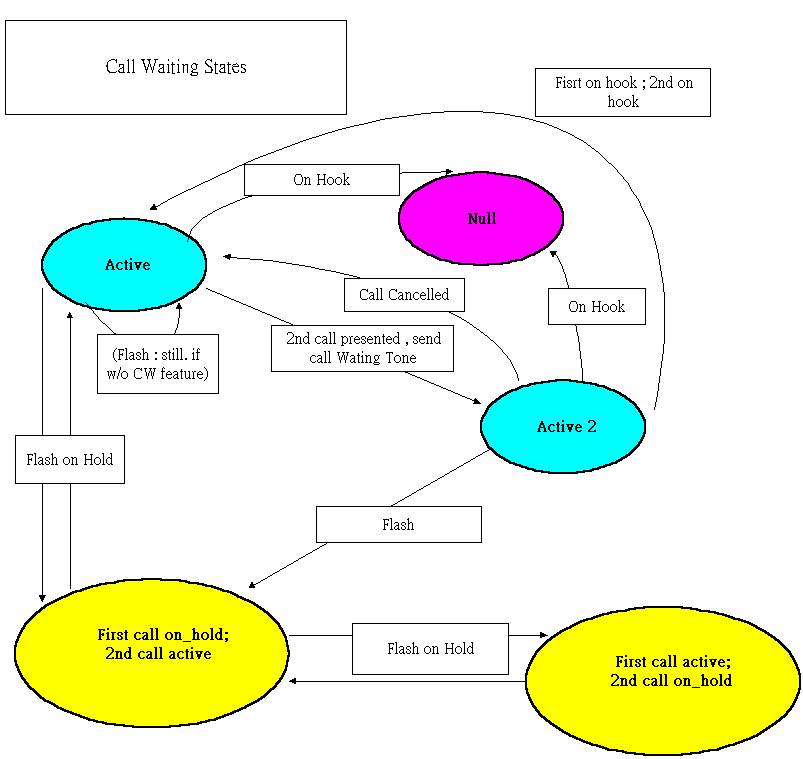

  Call Waiting



Originating FSM Simulation (Call Waiting)



Terminating FSM Simulation (Call Waiting)








Wed Mar 16 00:25:25 CST 2011


Untitled Document









  Simulator Code






Basic Call Model (Originating)





//#Oringin Side call model
_state Null
_event Off-Hook Colleting_Info Send dial tone and collect digits
_state Colleting_Info
_event Info_Collected  Analyzing_Info Analyze collected digits
_event On_Hook Null Reset
_state Analyzing_Info
_event Info_Analyzed Selecting_Route Use information to select route
_event Error_info Error_State Send error announcement
_event On_Hook Null Reset
_state Selecting_Route
_event Route_selected Call_Processing Proceed with call
_event On_Hook Null Reset
_state Call_Processing
_event Call_Delivered Waiting_For_Answer Send Ring_back_tone
_event Busy Error_State Send Busy_Tone
_event On_Hook Null Reset
_state Waiting_For_Answer
_event Answered Active Connect the call
_event No_Answer_timeout Dead_State Fast_busy_tone
_event On_Hook Null Reset
_state Active
_event On-Hook Null Tear Down the call
_event Terminating_side_disconnected_timeout Dead_State Forced tear down and send Fast_busy_tone
_state Error_State
_event On_Hook Null Reset
_event Timeout Dead_State Forced tear down and send Fast_busy_tone
_state Dead_State
_event On_Hook Null Reset






Basic Call Model (Terminating)





//#Terminating Side call model
_state Null
_event Call_presented Hunting_Facility Check the status of terminating phone
_state Hunting_Facility
_event Facility_Found Presenting_Call Asking for connection
_event Busy Null Send Busy_Tone
_state Presenting_Call
_event Call_Accepted Alerting Send Ring Current
_event Call_Rejected Null Play Announcement
_state Alerting
_event Off-Hook Active Connecting call
_state Active
_event On-Hook Null Tear Down the call
_event Originating_side_disconnected_timeout Dead_State Forced tear down and send Fast_busy_tone
_state Dead_State
_event On_Hook Null Reset
