ADSL

Players in High Speed Access

ADSL promises

ADSL and VDSL

數位用戶迴路 xDSL

xDSL- 基本架構

ADSL

VDSL

SHDSL

xDSL 發展情形

ADSL Block Diagram

ADSL for Data Services

Advantage of ADSL

A Network Strategy

Use of ADSL

Conclusion


Untitled Document
Players in High Speed Access
FTTH(Fiber to the Home)
HFC(Hybrid Fiber Coax)

Telcos

Cable companies

Direct Sateliite

ADSL/VDSL

Asymmetric Digital Subscriber Loop
Sun Jun 26 06:17:22 CST 2011

Untitled Document
ADSL promises

a cost effective way to provide Internet Access Right now

a cheap migration path to FTTC+vDSL and provides VOD services later
Sun Jun 26 06:17:22 CST 2011 Untitled Document
ADSL and VDSL
ADSL

Asymmetric Digital Subscriber Loop

High speed transmission over POTS

l.5 to 6 Mb/s downstream(18,000 to 12,000 ft)

64 to 640 kb/s upstream

DMT modulation adapted by ANSI T1.413

Field Trials

GTE(with Microsoft), AT&T,Bell Atlantic, ...
VDSL

l2 to 15 Mb/s downstream(4,400 to 1,000 ft)

1.5 to 6 Mb/s upstream
Sun Jun 26 06:17:22 CST 2011 Untitled Document
數位用戶迴路 xDSL

利用現有的雙絞銅線可以讓使用者與電信業者達成高速傳輸的技術

利用比語音更高的頻帶來傳送資料以達到更高傳輸速率

可同時允許資料和語音的傳輸

提供對稱與非對稱式的傳輸

xDSL 的技術包含 : HDSL、 HDSL2、SDSL、SHDSL、MDSL、R-ADSL、 ADSL、IDSL、VDSL等
Sun Jun 26 06:17:23 CST 2011 Untitled Document
xDSL- 基本架構

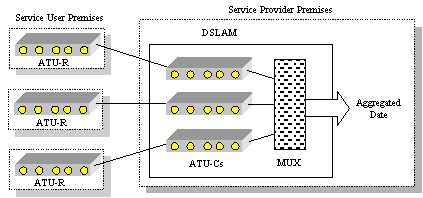

用戶端DSL數據機與交換機房DSL接取多工器 (DSLAM)連接圖
Sun Jun 26 06:17:23 CST 2011 Untitled Document

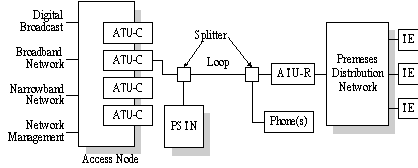

ADSL

ADSL (Asymmetric Digital Subscriber Line)

Internet資料傳輸量上下不對稱,正好符合ADSL的傳輸特性

目前標準已經統一採用離散多重音調 (DMT) 調變

訊號經過訊號分離器後,語音走PSTN,而較高頻的數據資料則送到數據網路
Sun Jun 26 06:17:23 CST 2011 Untitled Document

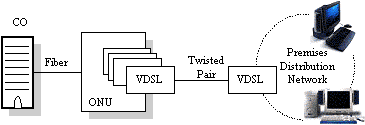

VDSL

VDSL (Very High data rate Digital Subscriber Line)

xDSL技術中速度最快,但傳輸距離也最短

在一對銅質雙絞線上,以非對稱方式,成為FTTH的替代方案
Sun Jun 26 06:17:23 CST 2011 Untitled Document
SHDSL

SHDSL (Single-pair High Speed Digital Subscriber Line)

新一代的單銅絞線對稱式DSL技術

由於G.shdsl標準的確立及成熟,逐漸成為目前對稱式DSL市場的主流

ITU在2001年2月中通過了一項關於SHDSL的全球標準建議案- G.994.1, SHDSL的標準就更臻於完整
Sun Jun 26 06:17:23 CST 2011 Untitled Document
xDSL 發展情形

發揮電話雙絞線最大傳輸量的VDSL

能提供多種對稱性傳輸速率的國際互通標準-G.shdsl

語音在DSL傳輸上的應用 (voice over xDSL)
Sun Jun 26 06:17:24 CST 2011 Untitled Document

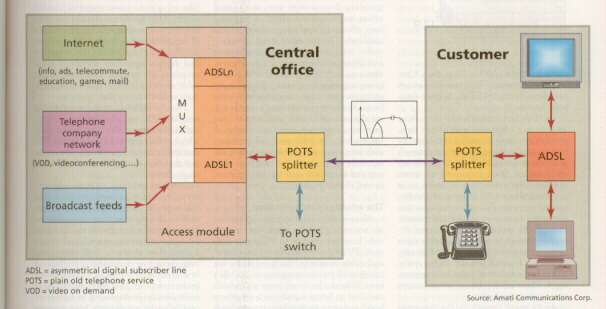

ADSL Block Diagram
